Cable Supplier to Malaysia — Power Cable & Overhead Conductor Factory Direct Export

Malaysia Electricity Market Overview

Malaysia has one of the most developed electricity infrastructures in Southeast Asia, with a national electrification rate exceeding 99.5% in Peninsular Malaysia (Suruhanjaya Tenaga / Energy Commission, 2023). However, electrification in East Malaysia (Sabah and Sarawak) remains an ongoing challenge, with rural areas in Sarawak still below 95% coverage. The country's installed generation capacity stands at approximately 40 GW, managed primarily through Tenaga Nasional Berhad (TNB) in Peninsular Malaysia and Sarawak Energy Berhad (SEB) in Sarawak.

Malaysia's electricity sector is entering a transformative period. Under the 12th Malaysia Plan (2021–2025) and the National Energy Transition Roadmap (NETR), the government has committed to achieving 31% renewable energy capacity in the national mix by 2025 and 70% by 2050. This transition drives massive investment in solar farms, grid interconnection, and distribution network upgrades — all of which require substantial volumes of power cables, overhead conductors, and specialised renewable energy cables.

Key Drivers of Cable Demand in Malaysia

TNB Grid Modernisation (RP4 2025–2027): Tenaga Nasional Berhad is investing heavily in grid infrastructure under Regulatory Period 4. This includes upgrading aging 33 kV and 11 kV distribution networks, installing underground cables in urban centres (Kuala Lumpur, Johor Bahru, Penang), and expanding transmission capacity to support new data centres and industrial zones.

Large-Scale Solar (LSS) Programme: Malaysia's Large-Scale Solar auctions have allocated over 5 GW of solar capacity. Each solar farm requires DC solar cables (PV1-F), AC collection cables, and medium-voltage interconnection cables to feed into the TNB grid.

East Malaysia Rural Electrification: SESCO (Sarawak Energy) continues to extend grid coverage to remote longhouse communities in interior Sarawak using overhead lines (ABC and bare conductors) and micro-grid installations.

Data Centre Boom: Malaysia is emerging as a regional data centre hub, with major investments in Johor, Selangor, and Cyberjaya. Data centres require large volumes of XLPE power cable, fire-resistant cable, and control cable for their electrical infrastructure.

Pan Borneo Highway and Infrastructure Projects: Major infrastructure development across Sabah and Sarawak creates demand for underground power cables and street lighting cables.

Import Statistics

Malaysia imports a significant portion of its cable requirements, particularly for specialised and large cross-section cables. According to Malaysia External Trade Statistics (MATRADE), the country imported approximately US$890 million in insulated wire and cable (HS 8544) in 2023. China is among the top three cable suppliers to Malaysia, alongside Japan and South Korea. Key imported products include medium-voltage XLPE cables, bare overhead conductors, and solar PV cables.

Malaysian Standards and Certification Requirements

Malaysia maintains a robust regulatory framework for electrical products. Understanding these requirements is essential for successful cable supply to the Malaysian market.

Malaysian Standard (MS) for Cables

Malaysia adopts IEC standards through the Department of Standards Malaysia (JSM), published as Malaysian Standards (MS). Key cable standards include:

• MS IEC 60502-1 — Power cables with extruded insulation for rated voltages 1 kV to 3 kV
• MS IEC 60502-2 — Power cables for rated voltages from 6 kV to 30 kV
• MS IEC 61089 — Round wire concentric lay overhead electrical stranded conductors
• MS IEC 60228 — Conductors of insulated cables (classes 1, 2, 5, 6)
• MS 1747 — Specification for PVC insulated cables for electricity supply
• MS IEC 62930 — Electric cables for photovoltaic systems
• MS IEC 60364 — Electrical installations of buildings

Our factory manufactures to IEC standards, which directly align with the MS IEC adopted standards used in Malaysia. This means our products meet Malaysian technical requirements from the production floor.

SIRIM Certification

SIRIM QAS International is Malaysia's national certification body. Electrical cables sold in Malaysia may require SIRIM product certification depending on the application:

• Mandatory certification (ST COA): Required for cables used in building wiring and consumer installations. The Energy Commission of Malaysia (Suruhanjaya Tenaga) mandates that certain cable categories carry SIRIM certification before they can be legally sold in the domestic market.
• Voluntary certification: For cables used in industrial, utility, and project-specific applications, SIRIM certification is not always mandatory but may be requested by end-users or specifying engineers.

The SIRIM certification process involves:

1. Application submission with product specifications and test reports
2. Product testing at SIRIM QAS laboratories (or acceptance of CB test reports from IECEE member laboratories)
3. Factory audit / quality system assessment
4. Certificate issuance (typically valid for 3 years with annual surveillance)

Our advantage: We hold IECEE CB Scheme certificates for our cable product lines. The CB Scheme is recognised by SIRIM, which means our existing CB test reports can be used to fast-track the SIRIM certification process without requiring full re-testing. We assist Malaysian buyers and distributors with the documentation required for SIRIM applications.

TNB Approval for Utility-Grade Products

For cables to be used directly in TNB's network (distribution and transmission), products must meet TNB's internal procurement specifications. TNB Labs (TNB's testing and certification subsidiary) conducts product evaluation and issues TNB Product Certification. This applies primarily to:

• Bare overhead conductors (ACSR, AAC, AAAC) for TNB distribution lines
• Medium-voltage cables for TNB underground distribution
• ABC cables for TNB LV networks

Our products are manufactured to the same IEC standards that TNB references. We provide complete type test reports and support the TNB Labs evaluation process for Malaysian distributors and contractors seeking TNB-approved cable supply.

Shipping Logistics: China to Malaysia

Malaysia's proximity to China makes it one of the fastest and most cost-effective shipping routes in Southeast Asia. Our factory in Henan Province ships regularly to Malaysian ports.

Departure Ports

• Qingdao Port — Primary departure port, excellent vessel frequency to Port Klang and Penang
• Shanghai Port — Alternative for combined shipments
• Shenzhen (Yantian/Shekou) — Closest Chinese port to Malaysia, shortest transit time

Arrival Ports in Malaysia

• Port Klang (Westport / Northport) — Malaysia's busiest port, serving Kuala Lumpur and the central region. Primary destination for cable imports.
• Penang Port — Serves the northern industrial corridor
• Johor Port / Pasir Gudang — Serves southern Malaysia and Singapore-border industrial zones
• Kuching Port / Bintulu Port — For East Malaysia (Sarawak) projects
• Kota Kinabalu / Sandakan — For Sabah projects

Transit Time

Malaysia is one of the closest major markets to China by sea. Short transit times mean faster project delivery and lower inventory holding costs for Malaysian buyers.

Container Loading

Cable drums are loaded into standard 20GP or 40GP containers:

• ACSR/AAC conductors: 18–22 tonnes per 20GP on wooden or steel drums
• XLPE power cable: 15–20 tonnes per 20GP depending on cross-section
• Armoured cable: 16–20 tonnes per 20GP
• Solar cable: 20–24 tonnes per 20GP (lighter per metre, more metres per container)

We provide detailed container loading plans and coordinate with freight forwarders for door-to-port or door-to-door delivery.

Import Duty and ACFTA Preferential Rates

Malaysia and China are both members of ASEAN-China Free Trade Area (ACFTA). Under ACFTA, most cable products enjoy preferential duty rates:

• HS 7614 (Aluminium conductors, bare): 0% under ACFTA (MFN rate: 10%)
• HS 8544.49 (Insulated cables ≤1000V): 0% under ACFTA (MFN rate: 20%)
• HS 8544.60 (Cables >1000V): 0% under ACFTA (MFN rate: 15%)

To qualify for ACFTA preferential rates, we provide Form E (ASEAN-China Certificate of Origin) with every shipment. This can save Malaysian importers 10–20% in duty costs compared to MFN rates.

Additional charges: SST (Sales and Service Tax) at 6% applies to imported goods. Port charges and customs processing fees vary by port.

Most Demanded Cable Products in Malaysia

Based on our supply experience to the Malaysian market, the following products see the highest and most consistent demand:

1. XLPE Insulated Power Cable (Medium Voltage)

Application: TNB underground distribution (11 kV, 33 kV), industrial power supply, data centre feeders, commercial building main incoming supply.

Malaysia's urban areas are increasingly moving distribution underground. Kuala Lumpur, Johor Bahru, and Penang all have active underground cable programmes. Popular specifications:

• 11 kV single-core 185 mm² to 630 mm² Cu/XLPE/CWS/PVC

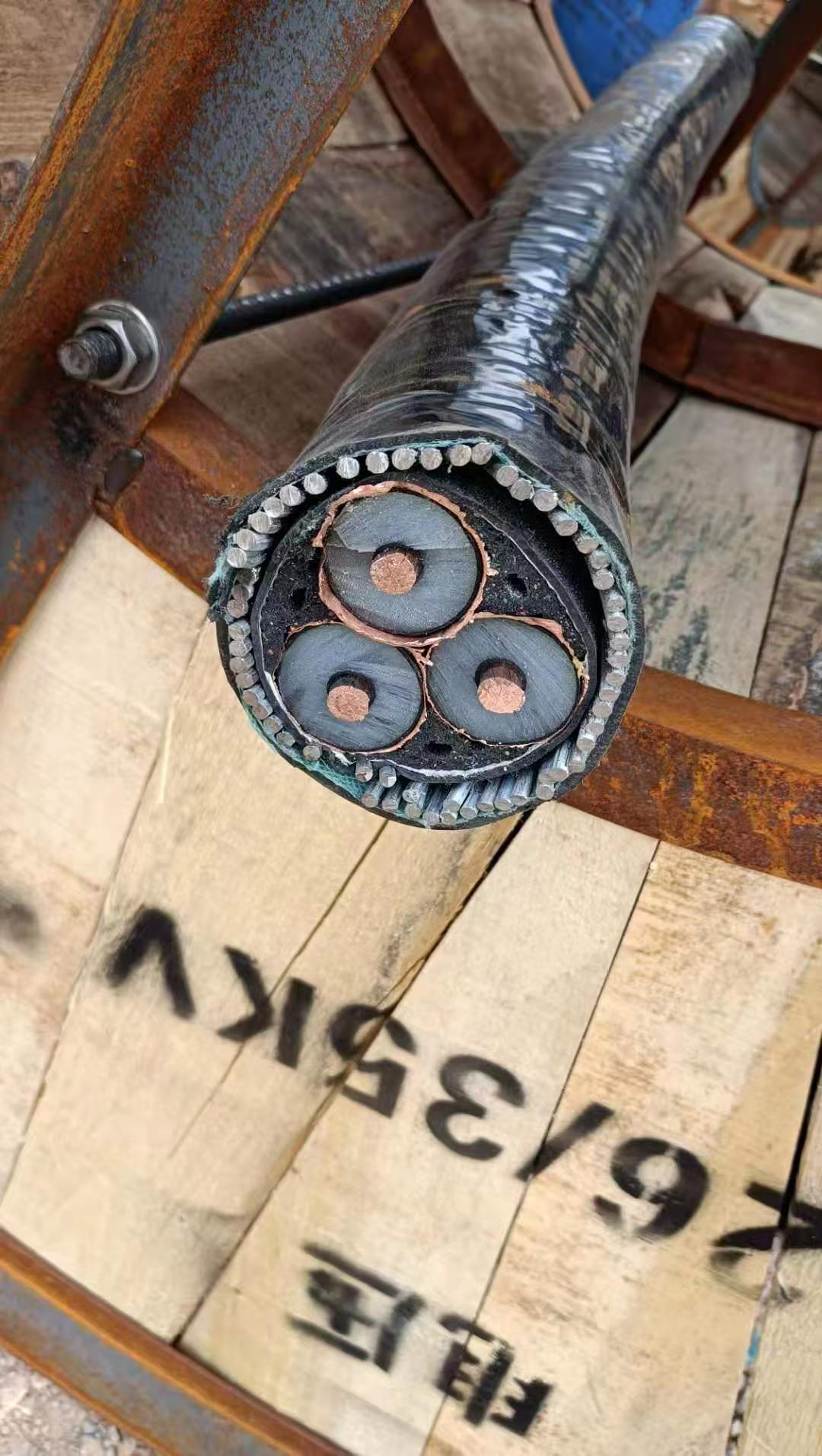

• 11 kV 3-core 95 mm² to 300 mm² Cu/XLPE/SWA/PVC
• 33 kV single-core 240 mm² to 630 mm² Cu/XLPE/CWS/PE
• 0.6/1 kV 4-core 16 mm² to 400 mm² Cu or Al/XLPE/SWA/PVC

Manufactured to MS IEC 60502-1 and MS IEC 60502-2 with cross-linked polyethylene insulation, copper wire screen, and PVC or PE outer sheath. All medium-voltage cables undergo partial discharge testing and AC voltage withstand per routine test requirements.

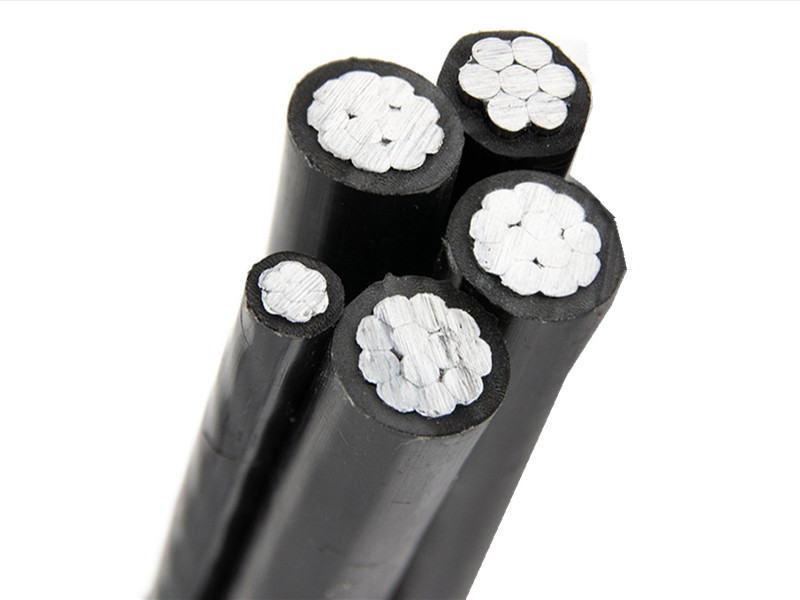

2. ABC (Aerial Bundled Cable)

Application: TNB low-voltage distribution, rural electrification in East Malaysia, housing estate internal reticulation.

ABC is the standard for new LV overhead distribution in Malaysia, replacing bare aluminium lines. TNB specifies ABC for all new LV construction and network rehabilitation. Common sizes:

• 3×120+70 mm² (3-phase main feeder)
• 3×95+70 mm²
• 3×70+50 mm²
• 1×16 mm² (service drops / street lighting)

Our ABC is manufactured to IEC 60502-1 / MS 1747 with XLPE insulated phase conductors and bare or insulated neutral messenger. Available in aluminium or AAC alloy conductors.

3. Bare Overhead Conductors (ACSR / AAC / AAAC)

Application: TNB 33 kV and 132 kV transmission, medium-voltage distribution feeders, rural electrification lines.

Overhead conductors remain essential for Malaysia's transmission backbone and rural networks where underground installation is not economical. Most demanded sizes:

• ACSR Dog (100 mm²) — 33 kV distribution
• ACSR Lynx (175 mm²) — 132 kV transmission
• AAC 150 mm² to 300 mm² — Urban distribution
• AAAC 120 mm² to 240 mm² — Corrosion-prone coastal areas

All conductors manufactured to IEC 61089 / MS IEC 61089 with full tensile strength, elongation, and DC resistance certification.

4. Solar PV Cable

Application: Large-Scale Solar (LSS) farms, rooftop solar installations, solar EPC contractor supply.

With Malaysia's aggressive solar targets (5 GW+ allocated), demand for solar cable is growing rapidly. We supply:

• PV1-F 1×4 mm² and 1×6 mm² (DC string cable) — 1500V DC rated
• PV1-F 1×10 mm² to 1×35 mm² (DC main cable)
• H1Z2Z2-K solar cable per EN 50618

All solar cables are TUV-tested and comply with IEC 62930 / EN 50618. UV resistant, halogen-free, rated for 25+ year outdoor service life. We hold SGS test reports for our solar cable range.

5. Fire Resistant Cable

Application: High-rise buildings (mandatory per Malaysian fire code), hospitals, airports, data centres, shopping malls.

Malaysia's Uniform Building By-Laws (UBBL) require fire-rated cables for emergency circuits in high-rise buildings. Our fire resistant cable range includes:

• YTTW mineral insulated flexible cable — 950°C/3h fire resistance
• BTTZ rigid mineral insulated cable — BS 6387 CWZ rated
• NHXH low-smoke halogen-free cable — IEC 60332-3 flame retardant
• Fire resistant power cable — BS 6387/IEC 60331 compliant

These cables maintain circuit integrity during fire conditions, ensuring emergency lighting, fire alarms, smoke extraction fans, and fire lifts continue to operate during evacuation.

6. Control and Instrumentation Cable

Application: Industrial plants (petrochemical, palm oil processing, manufacturing), power stations, building management systems.

Malaysia's industrial sector — particularly the petrochemical corridor in Terengganu and Pahang, and palm oil processing facilities across the country — requires reliable control and instrumentation cabling:

• Multi-core control cable 2-core to 37-core (0.75 mm² to 2.5 mm²)
• Screened/shielded instrumentation cable
• Armoured control cable for outdoor and underground routes
• Fire-rated control cable for critical circuits

Climate Considerations for Cable Selection

Malaysia's tropical climate presents specific challenges for cable installations:

High ambient temperature: Average ambient of 30–35°C year-round requires derating current-carrying capacity. Our cable specifications include tropical derating factors.

High humidity and rainfall: Annual rainfall exceeds 2,500 mm in most regions. Underground cables must have robust moisture barriers. Our XLPE cables feature radial moisture barrier (aluminium laminate) options for direct burial in waterlogged soil.

UV exposure: Outdoor cables face intense tropical UV radiation. All our outdoor-rated cables use UV-stabilised PE or HDPE outer sheaths.

Termite resistance: Subterranean termites are active throughout Malaysia. For direct-buried cables, we recommend steel wire armoured (SWA) construction or HDPE outer sheath, which provides physical protection against termite damage.

Coastal corrosion: Coastal installations (particularly in East Malaysia and Penang) face salt spray corrosion. We recommend AAAC conductors over ACSR for coastal overhead lines, and cables with enhanced anti-corrosion treatment for coastal underground routes.

Quality Assurance and Testing

Every cable shipment to Malaysia is backed by comprehensive quality documentation:

• ISO 9001:2015 certified quality management system
• IECEE CB Scheme certificates for power cable product lines
• CNAS-accredited laboratory testing (in-house and third-party)
• Full routine testing per applicable IEC/MS standard on every production reel
• Type test reports available for all product families

We welcome third-party inspection by SGS, Bureau Veritas, Intertek, or TUV at our factory prior to shipment. Many Malaysian contractors and TNB-registered vendors arrange pre-shipment inspection, and we fully accommodate this.

Test Reports Included with Every Shipment

• Conductor DC resistance test
• Insulation resistance test
• High-voltage withstand test (routine and sample)
• Partial discharge test (for MV cables)
• Dimensional verification (conductor, insulation, sheath thickness)
• Hot set test for XLPE (crosslinking verification)
• Material certificates for conductor copper/aluminium

Why Choose China Cable Factory for Malaysia Projects

Factory-direct pricing with ACFTA duty savings: Direct from our production facility with Form E certificate for 0% preferential import duty. No trading company markup.

Short delivery time: 5–14 days ocean transit (one of the shortest routes from China). Production lead time 15–25 days. Total delivery within 3–5 weeks from order.

IEC/MS standard compliance: We manufacture to the same IEC standards adopted as Malaysian Standards. No specification conversion needed.

CB certificate for fast SIRIM processing: Our CB test reports accelerate the SIRIM certification pathway for Malaysian distributors.

Tropical climate experience: We understand derating requirements, moisture protection, UV resistance, and termite resistance specifications for tropical installations.

Flexible order quantities: From single containers for project top-ups to hundreds of tonnes for major infrastructure contracts.

Documentation support: Full export documentation including Form E, commercial invoice, packing list, bill of lading, insurance certificate, and all technical test reports formatted for Malaysian customs clearance.

Get a Quote for Your Malaysia Project

Whether you are a TNB-registered contractor, an EPC company working on solar farms, a distributor serving the Malaysian construction market, or a project owner sourcing cables directly — we are ready to support your requirements.

Request a quote today:

• WhatsApp: +86-134-6102-4180 — Fast response, send your specifications directly
• Email: sales@chinacablefactory.com — For formal RFQ documents
• Contact Form: Submit your requirements — We reply within 24 hours

What to Include in Your Inquiry

• Cable type and specification (standard, voltage rating, conductor material, cross-section)
• Quantity required (metres or tonnes)
• Delivery port (Port Klang, Penang, Johor, Kuching, etc.)
• Project timeline and required delivery date
• Whether you need Form E for ACFTA preferential duty
• Any specific testing, inspection, or certification requirements

We provide detailed quotations including FOB and CIF pricing, production schedule, container loading plan, and complete shipping timeline. Our team communicates in English and Chinese for seamless coordination.
