All Aluminum Alloy Conductor
AAAC Cable
High strength alloy conductor combining AAC's conductivity with ACSR's strength
AAAC (All Aluminum Alloy Conductor) is made from 6201 aluminum-magnesium-silicon alloy strands, providing tensile strength comparable to ACSR with the corrosion resistance and lighter weight of AAC. AAAC is the modern choice for both transmission and distribution where balanced performance matters.
Key features
- Tensile strength close to ACSR — typically 295 N/mm²
- Better corrosion resistance than ACSR
- Lighter than ACSR for the same current rating
- Single-material conductor — easier connector compatibility
- Standard codes: Box, Rabbit, Mink, Beaver, Raccoon, Otter, Fox
Typical applications
- Transmission and distribution lines (up to 220 kV)
- Coastal / industrial / chemical environments
- Replacement of ACSR where corrosion is problematic
- Long-span overhead lines
Common AAAC Sizes (per IEC 61089 / BS 3242)
Custom sizes available on request — send us your project specification.
| Code Name | Cross Section (mm²) | Stranding | Overall Diameter (mm) | Approx. Weight (kg/km) | Rated Strength (kN) |
|---|---|---|---|---|---|
| Ash | 26.24 | 7 | 6.59 | 72.5 | 8.78 |
| Elm | 65.81 | 7 | 10.36 | 182 | 21.65 |
| Oak | 118.50 | 7 | 13.95 | 327 | 37.94 |
| Mistletoe | 157.20 | 19 | 16.31 | 432 | 50.23 |
| Cedar | 210.60 | 19 | 18.87 | 579 | 65.84 |
| Pine | 299.40 | 37 | 22.55 | 823 | 92.90 |
| Redwood | 564.60 | 61 | 30.93 | 1556 | 172.81 |

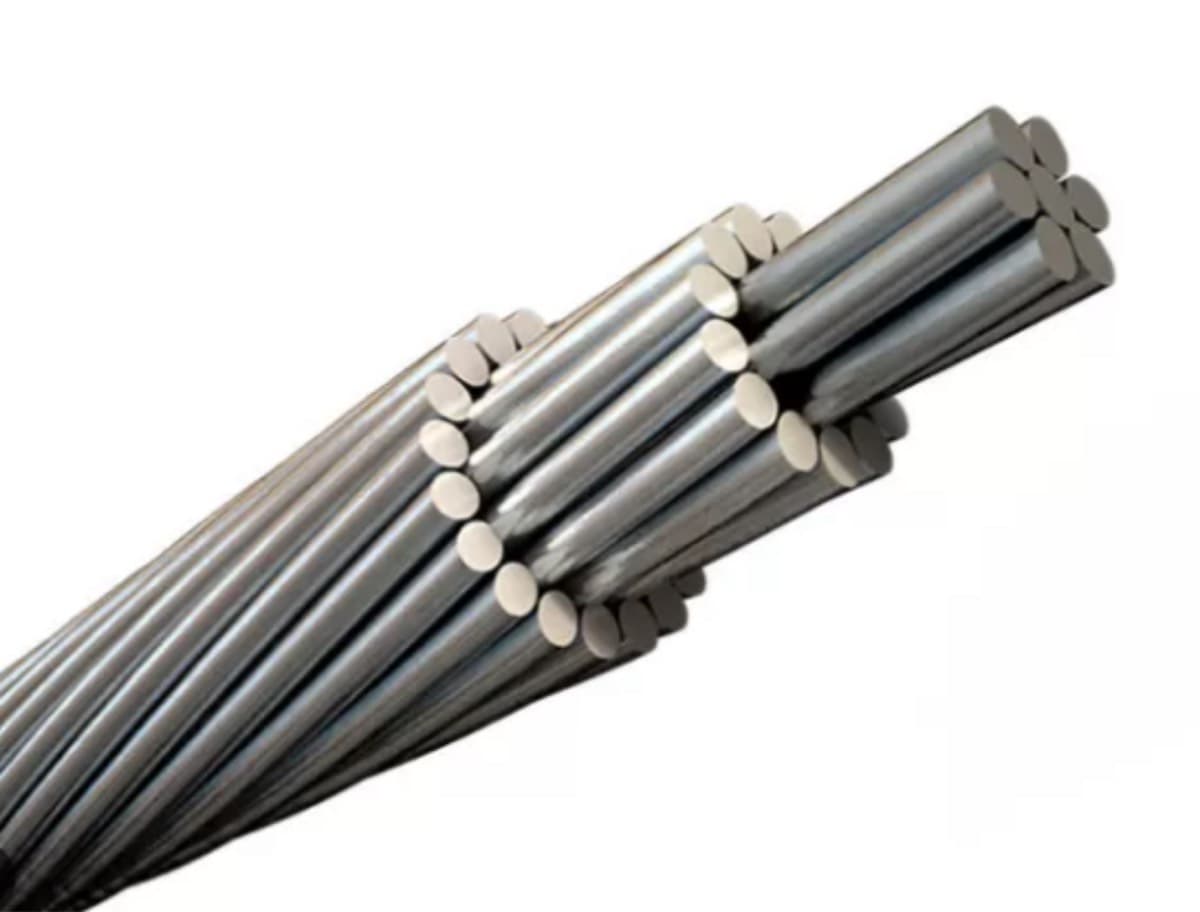

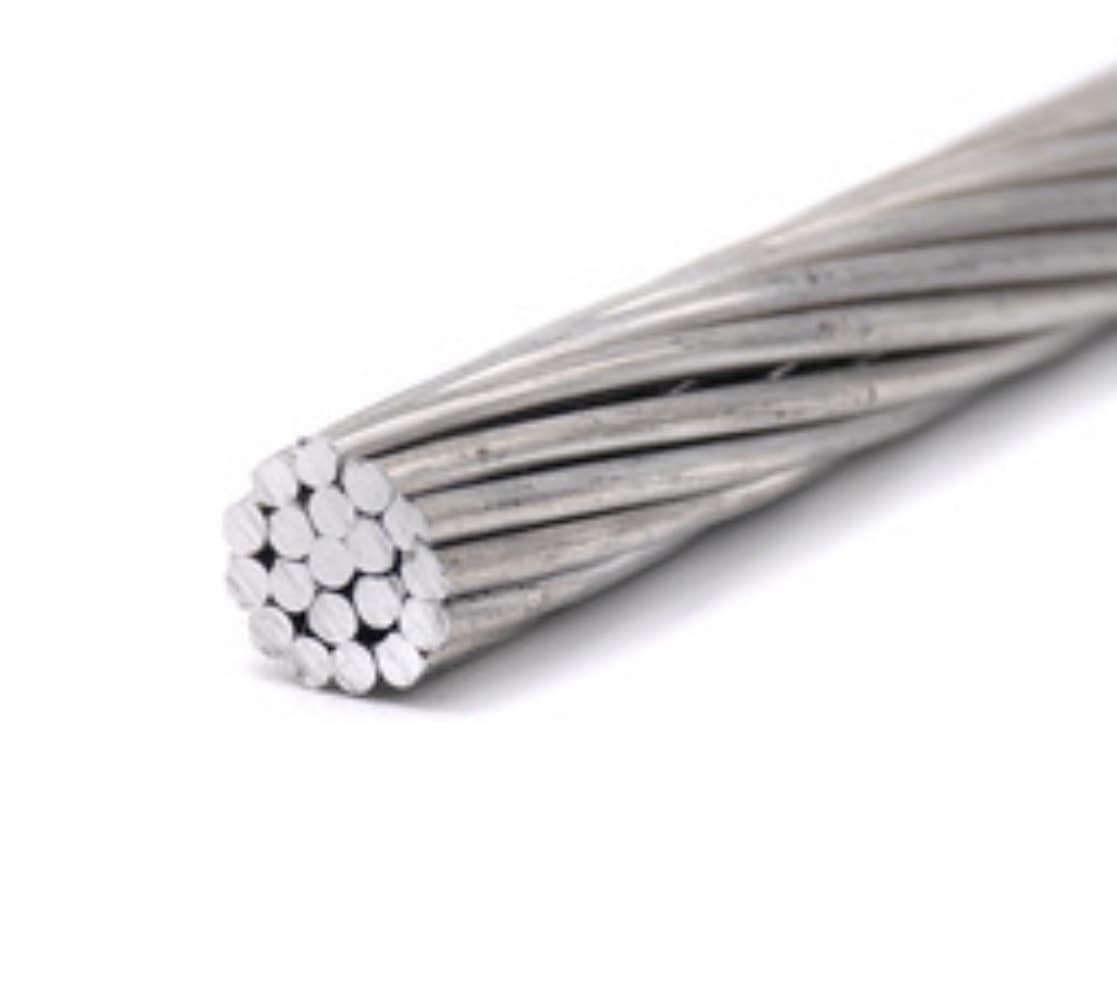

AAAC gallery
Factory & delivery capability
Real photos from our production facility — from raw material to container loading.
Production Line
Quality Testing
Warehouse & Stock
Drum Packaging
Container Loading
Ready to Ship
Frequently asked questions about AAAC
Q.Why choose AAAC over ACSR?
AAAC offers similar mechanical strength to ACSR without the steel core, giving better corrosion resistance, lighter weight, and easier fitting compatibility. It's the preferred choice for coastal projects and modern grid upgrades.
Q.What is the alloy used in AAAC?
We use 6201-T81 aluminum-magnesium-silicon alloy. Conductivity is 52.5% IACS minimum and tensile strength reaches 295 N/mm² after heat treatment.
Q.Can AAAC replace existing ACSR lines?
Yes, in many cases. AAAC has comparable strength-to-weight performance but requires re-evaluation of sag-tension and clearance. Send us your line geometry and we'll provide a comparison study.
