Cable Supplier to Saudi Arabia — Power Cable Manufacturer & Factory Direct Export

Saudi Arabia Electricity Market Overview

Saudi Arabia is undergoing the most ambitious infrastructure transformation in the Middle East. Driven by Vision 2030, the Kingdom is investing hundreds of billions of dollars in new cities, transportation networks, renewable energy installations, and industrial zones — all of which require massive quantities of electrical cable. With a population of 33.7 million (World Bank, 2023) and 100% electricity access, Saudi Arabia's cable demand is driven by expansion and modernization rather than basic electrification.

In 2023, Saudi Arabia imported US$650 million worth of insulated wire and cable (HS code 8544, UN Comtrade), reflecting the country's massive construction and infrastructure investment cycle.

The Saudi Electricity Company (SEC) operates the national grid, with over 90 GW of installed capacity serving more than 10 million customer accounts across a vast territory spanning 2.15 million square kilometres. Peak demand hit 74.8 GW in 2024. The grid is expanding rapidly to accommodate new mega-projects, population growth, and the electrification of previously off-grid areas. The Saudi energy sector targets substantial addition of renewable generation capacity under the National Renewable Energy Programme (NREP), with corresponding transmission and distribution expansion.

Key Drivers of Cable Demand

Vision 2030 Mega-Projects: Vision 2030 has committed over US$1 trillion in total infrastructure investment, including NEOM (US$500 billion), Riyadh Metro, and renewable energy targets of 58.7 GW by 2030. Projects including NEOM, The Line, Trojena, Oxagon, Jeddah Tower, King Abdullah Economic City, and the Red Sea Tourism Project represent an unprecedented wave of construction. Each project requires complete electrical infrastructure from high-voltage transmission down to building-level distribution, generating demand for tens of thousands of kilometres of cable.

Saudi Electricity Company Grid Expansion: SEC is expanding and upgrading the national grid with new 380 kV and 132 kV transmission lines, new substations, and extensive underground cable networks in urban areas. SEC's capital expenditure programme consistently ranks among the largest utility investment programmes in the region.

Renewable Energy Programme: The National Renewable Energy Programme (NREP) targets 50% renewable energy generation by 2030, translating to 58.7 GW of solar and wind capacity. Each solar farm and wind installation requires MV collector cables, HV export cables, and control cables connecting to the national grid.

Petrochemical and Industrial Expansion: Saudi Aramco, SABIC, and Ma'aden continue to expand refining and processing capacity. These facilities demand specialised flame-retardant, mud-resistant, and chemical-resistant cables for hazardous area installations.

Riyadh Metro and Public Transport: The Riyadh Metro — a US$22.5 billion project spanning six lines and 176 km (opened December 2024) — and other public transport projects in Jeddah, Mecca, and Medina require fire-rated, low-smoke halogen-free cables for tunnels, stations, and depot facilities.

NEOM and The Line: The 170 km linear city known as The Line alone represents one of the largest single infrastructure investments in history. The project requires complete electrical infrastructure including HV transmission, MV distribution, building cables, and smart grid components — all built from scratch in a greenfield environment.

Market Characteristics

Saudi Arabia's cable market is characterised by high technical specifications, rigorous certification requirements, and large order volumes. The Kingdom's climate — with ambient temperatures exceeding 50°C in summer — demands cables with enhanced thermal ratings. Underground installations are preferred in urban areas for aesthetic and reliability reasons, driving demand for directly buried and duct-installed cable systems.

The market strongly favours established manufacturers with proper SASO certification and a track record of supplying to SEC-approved specifications. Chinese cable manufacturers have steadily increased market share in Saudi Arabia over the past decade, now accounting for a significant portion of imported cables by volume, particularly in the medium-voltage and overhead conductor segments.

---

Saudi Arabian Standards and Certification Requirements

Saudi Arabia maintains strict quality and safety standards for electrical cable imports. The Saudi Standards, Metrology and Quality Organization (SASO) is the primary regulatory authority, while the Saudi Electricity Company enforces additional technical specifications for utility-grade cables.

SASO Standards for Cables

The Saudi Arabian Standards Organization publishes standards that cables must comply with for market entry:

• SASO 2927 — Low-voltage cables, fixed installation (aligned with IEC 60502-1)
• SASO IEC 60502-1 — Power cables with extruded insulation, rated voltages 1 kV to 3 kV
• SASO IEC 60502-2 — Power cables for rated voltages from 6 kV up to 30 kV
• SASO IEC 60228 — Conductors of insulated cables
• SASO IEC 61089 — Round wire concentric lay overhead electrical stranded conductors
• SASO IEC 60332 — Tests on electric cables under fire conditions
• SASO IEC 60754 — Test on gases evolved during combustion of materials from cables (halogen-free)
• SASO IEC 61034 — Measurement of smoke density of cables burning under defined conditions

Saudi Electricity Company (SEC) Specifications

For cables destined for SEC grid projects, additional SEC-specific technical specifications apply. These are based on IEC standards but include Saudi-specific amendments addressing desert climate conditions, higher ambient temperature ratings, and specific conductor configurations. Key SEC requirements include:

• Cables rated for 50°C ambient temperature (ground) and 65°C ambient (air) in summer conditions
• Specific UV resistance requirements for cables exposed to direct sunlight
• Enhanced termite resistance for directly buried cables in certain regions
• Copper or aluminium conductors per SEC specification sheets (SEC-GS series)
• Type testing and routine testing per SEC-approved test protocols

Our factory produces cables that meet SEC technical specifications. We maintain documentation packages formatted specifically for SEC contractor qualification submissions.

SASO Conformity Assessment (SABER Platform)

All cable products imported into Saudi Arabia must be registered through the SABER electronic platform (formerly SALEEM/SASO certificate of conformity). The conformity assessment process involves:

1. Product Registration: The manufacturer registers the product on the SABER platform with technical documentation, test reports, and quality system certificates.

2. Shipment Certificate of Conformity (SCoC): Each shipment requires a Shipment Certificate of Conformity issued by a SASO-recognized conformity assessment body (TUV, SGS, Intertek, Bureau Veritas).

3. Type Examination: For certain cable categories, a type examination certificate from a notified body may be required before the Product CoC is issued.

We maintain active product registrations on the SABER platform for our standard cable product lines. Our quality team handles the documentation process and coordinates with approved conformity assessment bodies to ensure every shipment receives its SCoC before vessel departure.

Additional Certifications

Depending on the end application, additional certifications may be required:

• Saudi Civil Defence approval — For fire-rated cables used in buildings and tunnels
• Saudi Aramco AVML (Approved Vendors and Manufacturers List) — For cables destined for oil and gas facilities
• DOSH (Department of Occupational Safety and Health) compliance — For industrial installations

---

Shipping Logistics: China to Saudi Arabia

Saudi Arabia's strategic position at the crossroads of Asia, Europe, and Africa provides excellent maritime connectivity from Chinese ports. We ship regularly to Saudi ports with well-established routing and transit schedules.

Departure Ports

Our factory in Henan Province connects efficiently to major Chinese container ports:

• Qingdao Port — Primary departure port for Middle East routes, excellent frequency
• Shanghai Port — Alternative with competitive rates and multiple carrier options
• Ningbo Port — Used for overflow and specific carrier preferences

Arrival Ports

• Jeddah Islamic Port — Primary port for western region projects (NEOM, Jeddah, Mecca, Medina)
• King Abdulaziz Port, Dammam — Primary port for eastern region projects (Jubail, Dhahran, Aramco facilities)
• Yanbu Commercial Port — For projects in the Yanbu industrial zone and Medina region

Transit Time

Typical ocean transit times from China to Saudi Arabia:

Transit times to Saudi Arabia are significantly shorter than to West Africa, benefiting from the direct Suez Canal route from Asia. We recommend allowing 20 days for transit planning purposes, plus 5–10 days for customs clearance.

Container Loading

Cable drums are loaded into standard 20GP or 40GP containers. Our loading configurations for typical Saudi Arabia orders:

• XLPE MV cable: 16–20 tonnes per 20GP on steel drums
• Flame retardant cable: 15–18 tonnes per 20GP depending on armour type
• LSZH cable: 14–18 tonnes per 20GP
• Overhead conductors (ACSR/AAC): 18–22 tonnes per 20GP on wooden or steel drums

We provide detailed container loading plans, including drum dimensions and weight distribution, as required by Saudi port authorities.

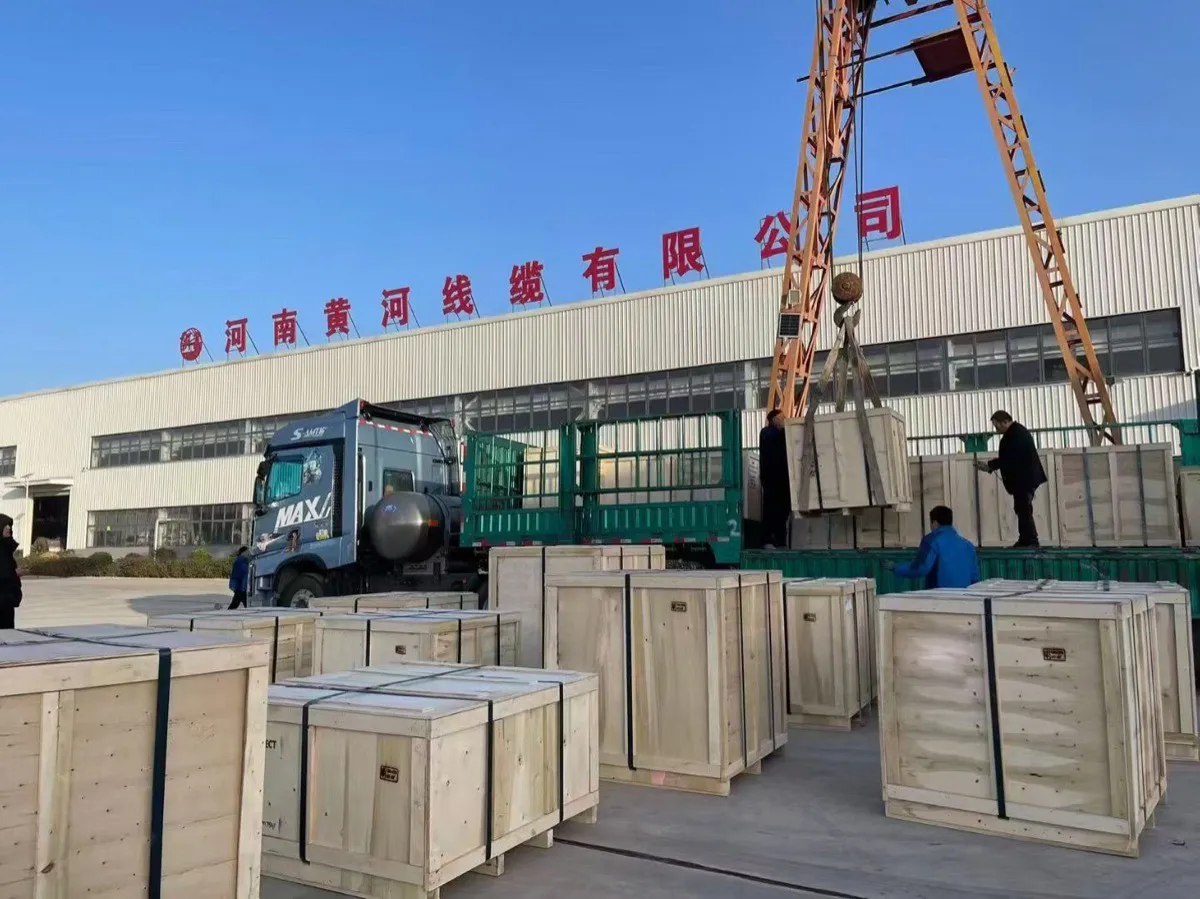

Cable shipment prepared for Jeddah Islamic Port, Saudi Arabia

Import Duty and VAT

Cable imports into Saudi Arabia are subject to:

• Import duty: 5% CET (GCC unified tariff) on HS 8544
• VAT: 15% (applied on CIF value plus duty)

Saudi Arabia's relatively low import duty compared to other markets makes Chinese cable products highly competitive on a landed-cost basis. We provide complete landed cost estimates including duty, VAT, and port handling charges upon request.

---

Most Demanded Cable Products in Saudi Arabia

Based on current market requirements and our active project supply, the following products are most in demand for Saudi Arabian infrastructure:

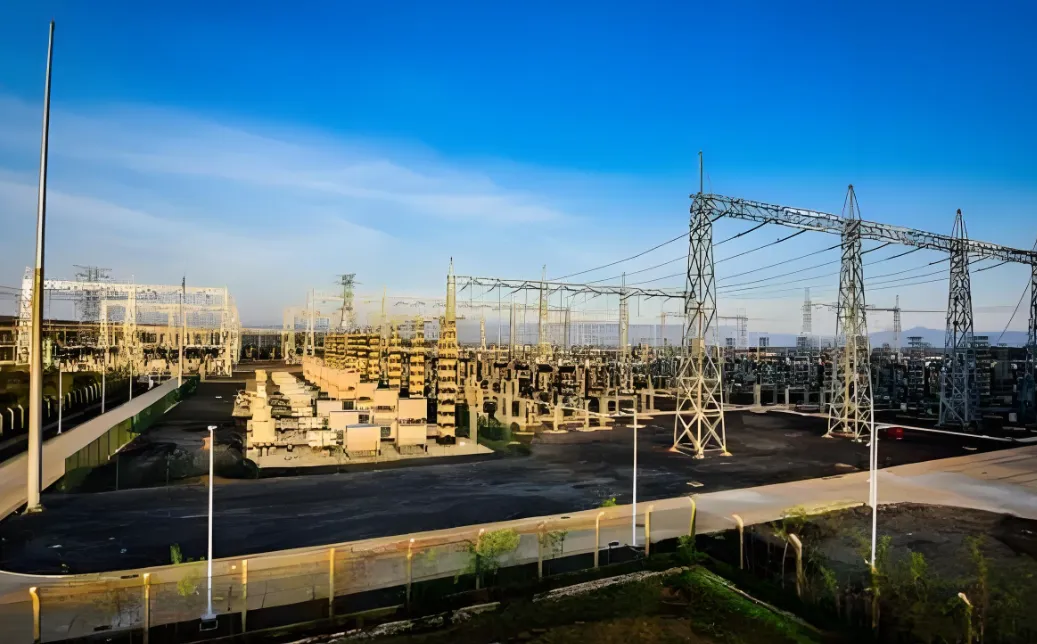

1. XLPE Medium-Voltage Cable for Grid Distribution

Application: SEC 13.8 kV and 33 kV underground distribution networks, substation interconnection, industrial power supply, Vision 2030 project internal distribution.

XLPE-insulated medium-voltage cable is the single largest category of cable demand in Saudi Arabia, driven by SEC's preference for underground distribution in urban and suburban areas. Key specifications:

• 13.8 kV (8.7/15 kV) single-core and 3-core, 95 mm² to 630 mm² aluminium
• 33 kV (19/33 kV) single-core XLPE, 150 mm² to 1000 mm² aluminium or copper
• Copper wire screen or aluminium wire screen per SEC specification
• HDPE outer sheath for direct burial or PVC for duct installation
• Rated for 90°C continuous conductor temperature

All medium-voltage cables undergo full routine testing including partial discharge measurement (≤5 pC at 2U₀), AC voltage withstand, and conductor resistance verification. Type test reports from CNAS-accredited laboratories are available for all standard configurations.

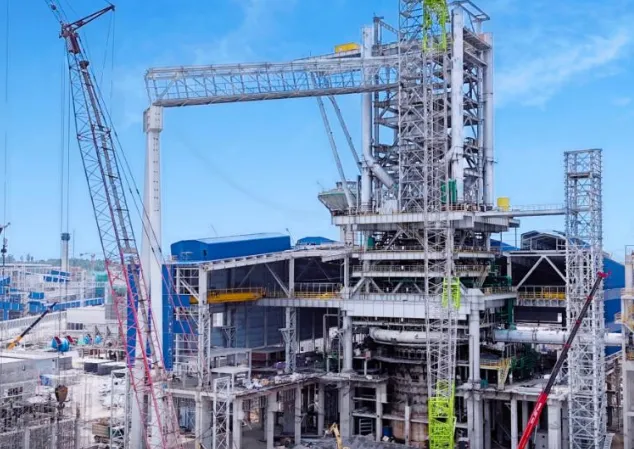

2. Flame Retardant Cable for Petrochemical Installations

Application: Saudi Aramco refineries, SABIC plants, Ma'aden facilities, Jubail and Yanbu industrial cities, offshore platforms.

Petrochemical installations demand cables with enhanced fire performance, chemical resistance, and suitability for hazardous area classification. Our range includes:

• FR-XLPE/SWA/PVC power cables (0.6/1 kV to 19/33 kV)
• Flame retardant control cables (IEC 60332-3 Category C)
• Fire-resistant cables maintaining circuit integrity for 120 minutes (IEC 60331)
• Instrumentation cables with individual and overall screens
• Thermocouple extension cables for process control

These cables are manufactured with compounds specifically formulated for high-temperature ambient conditions and resistance to hydrocarbon exposure. Available with galvanized steel wire armour, aluminium wire armour, or steel tape armour depending on installation requirements.

3. LSZH (Low Smoke Zero Halogen) Cable for Transport and Buildings

Application: Riyadh Metro, Jeddah public transport, commercial buildings, shopping malls, hospitals, airports, and tunnels.

Saudi Civil Defence regulations require LSZH cables in enclosed public spaces where smoke and toxic gas emissions during fire could endanger life. Our LSZH range covers:

• LSZH power cables 0.6/1 kV, single-core and multi-core (1.5 mm² to 630 mm²)
• LSZH control and signal cables
• LSZH fire alarm cables (IEC 60331 fire-resistant)
• LSZH data cables for building management systems

All LSZH cables are tested to IEC 60754-1 (halogen acid gas < 0.5%), IEC 60754-2 (pH ≥ 4.3, conductivity ≤ 10 µS/mm), and IEC 61034 (minimum light transmittance ≥ 60%).

4. Underground Distribution Cable for Urban Networks

Application: Smart city developments, NEOM, The Line, King Abdullah Economic City, residential compounds, commercial districts.

Saudi Arabia's new urban developments are designed with all electrical infrastructure underground, eliminating overhead lines. This drives demand for:

• 0.6/1 kV 4-core aluminium XLPE/PVC armoured cable (16 mm² to 400 mm²)
• Low-voltage service cables for building connections
• Street lighting cables (2-core and 4-core, 6 mm² to 25 mm²)
• Duct-installed cables with HDPE outer sheath for mechanical protection

These cables are designed for the Saudi thermal environment with derating factors applied for 50°C ground temperature at 1 metre burial depth, per SEC installation guidelines.

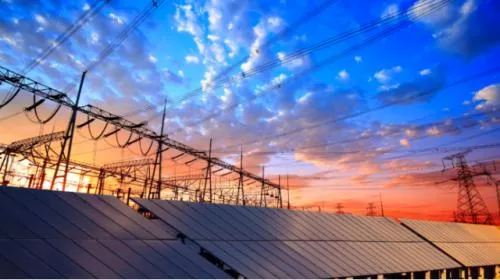

5. Solar Farm Cables for Renewable Energy Projects

Application: NREP solar installations, private PPA solar farms, rooftop solar programmes, hybrid renewable installations.

Saudi Arabia's massive solar energy programme requires specialised cables designed for photovoltaic applications:

• DC solar cable (single-core, 4 mm² to 16 mm², rated 1.5 kV DC)
• MV collector cables (33 kV XLPE) connecting inverter stations to grid substations
• Aluminium MV cable for solar farm internal ring main networks
• Control and communication cables for SCADA systems

Solar cables are manufactured with UV-resistant, weather-resistant sheaths rated for 25+ year outdoor exposure in desert conditions. All cables carry relevant IEC and EN certifications for photovoltaic applications.

---

Saudi Arabia Project Sectors and Requirements

Vision 2030 Infrastructure

The scale of Saudi Arabia's Vision 2030 programme is without precedent. Projects including NEOM, The Line, Trojena (the mountain resort), and Oxagon (the floating industrial complex) each represent entire cities being built from scratch. These projects require:

• Complete HV/MV/LV cable infrastructure from transmission to final distribution
• Smart grid capable cable systems with fibre optic integration
• Cables rated for extreme environmental conditions (desert, coastal, alpine)
• Rapid delivery schedules to meet aggressive construction timelines

We have the production capacity to support large-volume orders with dedicated production lines assigned to major project contracts. Our flexibility in scheduling allows us to meet the phased delivery requirements typical of mega-project procurement.

Oil and Gas Sector

Saudi Arabia's oil and gas sector, led by Saudi Aramco, operates some of the world's largest processing facilities. Cable requirements for this sector are characterised by:

• Strict vendor qualification (Aramco AVML listing)
• Hazardous area cable specifications (IEC 60079 series)
• Fire performance requirements exceeding standard commercial levels
• Comprehensive material traceability from raw conductor to finished cable
• Third-party witnessed factory acceptance testing (FAT)

We supply cables to contractors working on Aramco and SABIC projects, meeting the stringent documentation and quality requirements these operators demand.

Transport Infrastructure

The Kingdom is building rail networks (SAR/North-South Railway, Haramain High-Speed Rail expansion), metro systems (Riyadh, Jeddah, Mecca), airports, and road infrastructure. Transport sector cables require:

• Fire resistance (circuit integrity maintenance for evacuation systems)
• LSZH compounds for tunnel and station environments
• EMC performance for signalling cable proximity
• High mechanical strength for rail-side installations

---

Quality Assurance and Testing

Our quality assurance system is designed to meet the demanding requirements of Saudi Arabian projects:

• ISO 9001:2015 certified quality management system
• IEC CB Scheme certificates for all power cable ranges
• CNAS-accredited laboratory testing (in-house and third-party)
• Full routine testing per IEC 60502-1/2 on every production reel
• Type testing per IEC standards with valid reports from accredited laboratories
• SAT (Site Acceptance Testing) support available for major projects

Testing Capabilities

Our in-house laboratory performs:

• Partial discharge testing (up to 36 kV class)
• AC high-voltage withstand testing
• Impulse voltage testing (BIL)
• Hot set testing for XLPE compounds
• Conductor resistance measurement (4-terminal method)
• Insulation and sheath thickness measurement
• Tensile strength and elongation testing
• Flame propagation testing (IEC 60332-1 and 60332-3)
• Smoke density measurement (IEC 61034)
• Halogen content measurement (IEC 60754)

Third-Party Inspection

We accommodate all major international inspection companies for factory acceptance testing and pre-shipment inspection. Saudi clients regularly appoint SGS, Bureau Veritas, TUV, or Intertek to witness production testing. Our factory is audit-ready with open access to production areas, testing facilities, and quality records.

---

Why Choose China Cable Factory for Saudi Arabia Projects

SEC specification expertise: We produce cables that meet Saudi Electricity Company technical specifications, including enhanced temperature ratings and specific construction requirements for the Saudi environment.

SASO/SABER compliance: Our quality team manages the complete SABER registration process and coordinates with conformity assessment bodies for every shipment.

Vision 2030 capacity: We have the production volume capability to support mega-project supply contracts with dedicated production scheduling and phased delivery programmes.

Desert climate engineering: Our cables are designed and tested for high ambient temperatures (50°C ground, 65°C air), UV exposure, and sand/dust infiltration resistance.

Fast transit: With 18–22 day ocean transit to Jeddah and Dammam, we deliver significantly faster than competitors routing via transshipment ports.

Competitive landed cost: Saudi Arabia's 5% import duty combined with our factory-direct pricing makes Chinese cable products highly cost-competitive against regional manufacturers.

---

Get a Quote for Your Saudi Arabia Project

Whether you are a contractor on a Vision 2030 mega-project, an SEC-approved supplier expanding your product range, or an industrial facility upgrading your cable infrastructure — we are ready to support your requirements with SASO-certified, SEC-compliant cable products.

Request a quote today:

• WhatsApp: +86-134-6102-4180 — Fast response, send your specifications directly
• Email: sales@chinacablefactory.com — For formal RFQ documents
• Contact Form: Submit your requirements — We reply within 24 hours

What to include in your inquiry:

• Cable type and specification (standard, voltage rating, conductor size, construction)
• Quantity required (metres or kilometres)
• Delivery port (Jeddah, Dammam, or Yanbu)
• Project name and timeline
• Any specific testing, inspection, or certification requirements
• SEC specification number (if applicable)

We provide detailed quotations including FOB and CIF pricing, production schedule, shipping plan, and SABER documentation timeline. Our team communicates in English and Arabic and is available via WhatsApp for real-time project coordination.
