China Cable Factory · Huanghe Cable
Your Direct Cable Supplier in China — Factory Pricing, No Middlemen
45 years manufacturing power, control, solar and fire-resistant cable to IEC, GB and BS standards. Shipping to 60+ countries across Southeast Asia, Africa and the Middle East.
Choosing the wrong supplier is expensive. Under-spec conductor, non-compliant insulation or a trading company that vanishes after payment can stall a whole project and fail inspection on site. Buy direct from the factory that has passed IEC type tests and shipped to 60+ countries — and verify us before you pay.
China Cable Factory is the export arm of Huanghe Cable, a manufacturer based in Xinxiang, Henan producing wire and cable since 1980. With a 200+ team of engineers and production staff, an annual capacity of 20,000 km of cable and a network of 200+ domestic dealers behind it, the plant has the scale to handle full project schedules — while you deal with one accountable factory source rather than a trading company assembling your order from suppliers it does not control.
Our focus is Southeast Asia, Africa and the Middle East, where we have supplied national grid interconnections, utility-scale solar farms, mining mega-projects and rural electrification programs. We understand the standards these markets specify — IEC across the board, KEBS in Kenya, SANS in South Africa, PNS in the Philippines, BSTI in Bangladesh — and the climate conditions cable has to survive there, from desert heat to tropical humidity. That is why our quotes come sized for your actual site conditions, not a generic catalogue figure.
Below you will find the full product range with real specifications, photos from inside the plant, the in-house tests every batch passes, named export projects with volumes, and a clear five-step ordering process. If you already have a tender specification, the fastest route is simply to send it to us for a quote.
Why source cable from China at all? Scale. Chinese factories run the highest cable output in the world, which keeps unit cost competitive even after freight to your port — and a plant like ours holds copper, aluminum, XLPE compound and armour wire in-house, so we control both price and lead time rather than waiting on other suppliers. The catch is that the same market is full of trading companies reselling cable they never made. The rest of this page is built to help you tell the difference: real photos, real test data, real project names and real certificate numbers you can check.
Full Cable Range — One Supplier
Everything below is produced in-house. Real specifications — voltage class, conductor, cross-section and the international standard each product is built to.
| Cable Type | Voltage | Conductor | Cross-section | Key Standard |
|---|---|---|---|---|
| XLPE Power Cable (YJV/YJLV) | 0.6/1 kV – 35 kV | Copper / Aluminum | 1.5 – 1000 mm² | IEC 60502, GB/T 12706 |
| MV Cable 11kV / 33kV | 3.6/6 kV – 26/35 kV | Copper / Aluminum | 25 – 630 mm² | IEC 60502-2, BS 6622 |
| SWA Armoured Cable | 0.6/1 kV | Copper / Aluminum | 1.5 – 400 mm² | BS 5467, IEC 60502-1 |
| Fire Resistant Cable (NH) | 0.6/1 kV | Copper | 1.5 – 240 mm² | IEC 60331, BS 6387 |
| ACSR Bare Overhead Conductor | Bare conductor | Aluminum + Steel core | Gopher – Bison | IEC 61089, ASTM B232 |
| Solar PV Cable (PV1-F) | 1.5 kV DC | Tinned Copper | 1.5 – 300 mm² | EN 50618, TÜV 2Pfg |
Need a size or voltage not listed? We manufacture to custom specification — tell us your requirement.
Choosing the right conductor
Copper carries more current per mm² and suits dense loads and confined trays; aluminum is lighter and lower-cost for long overhead and distribution runs. For hot climates across the Middle East and Africa, correct de-rating for ambient temperature and burial depth matters as much as the raw cross-section — send us the site conditions and we size it for you.
Insulation, armour & standards
XLPE handles higher continuous temperatures than PVC and is the default for modern power distribution. Choose SWA/STA armour for direct burial and mechanical protection, and fire-resistant (IEC 60331) or LSZH construction for tunnels, high-rise and public buildings. We build to the exact standard your tender specifies — IEC, GB, BS or SANS — and state compliance in writing.
Inside the Factory

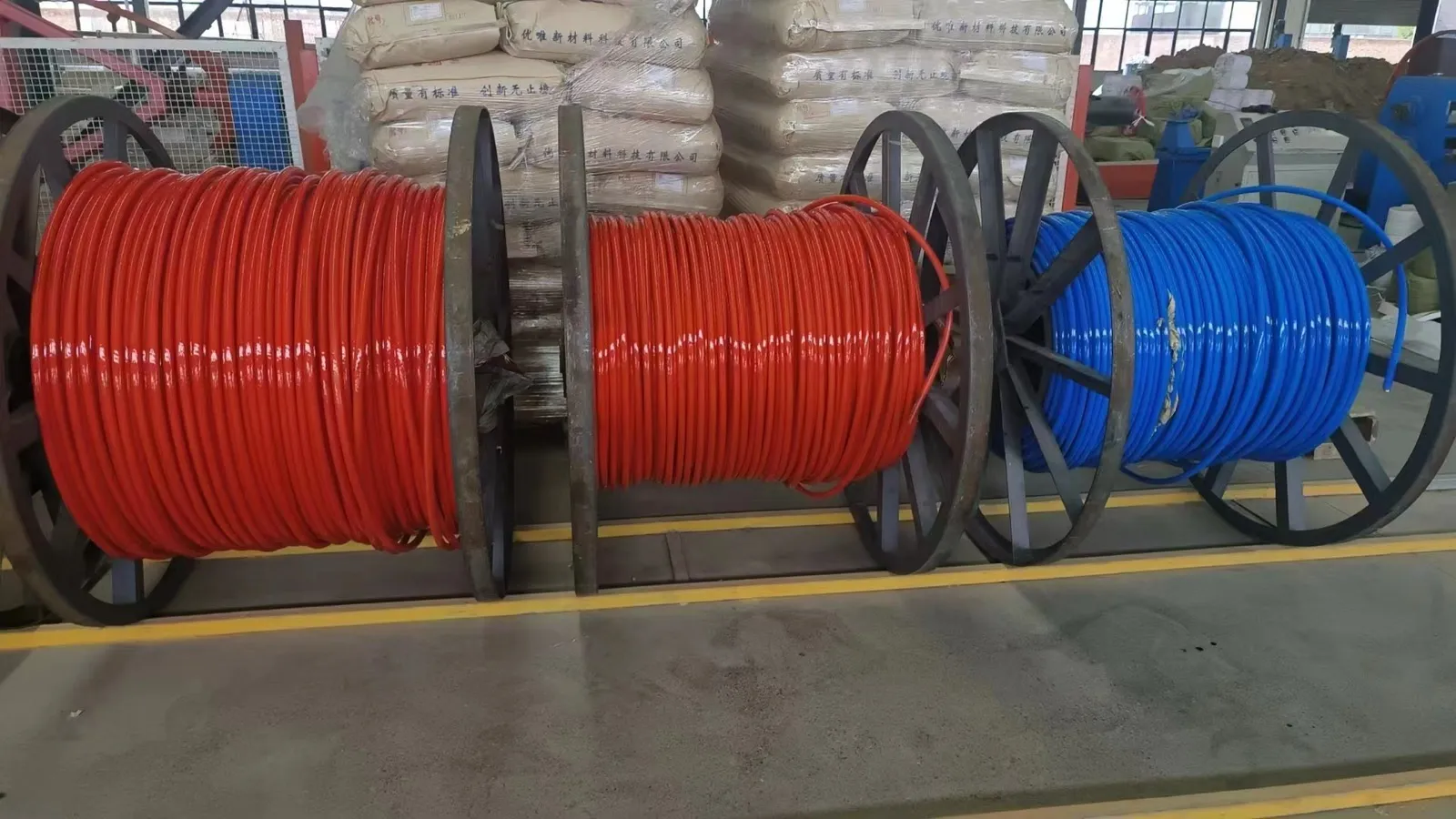

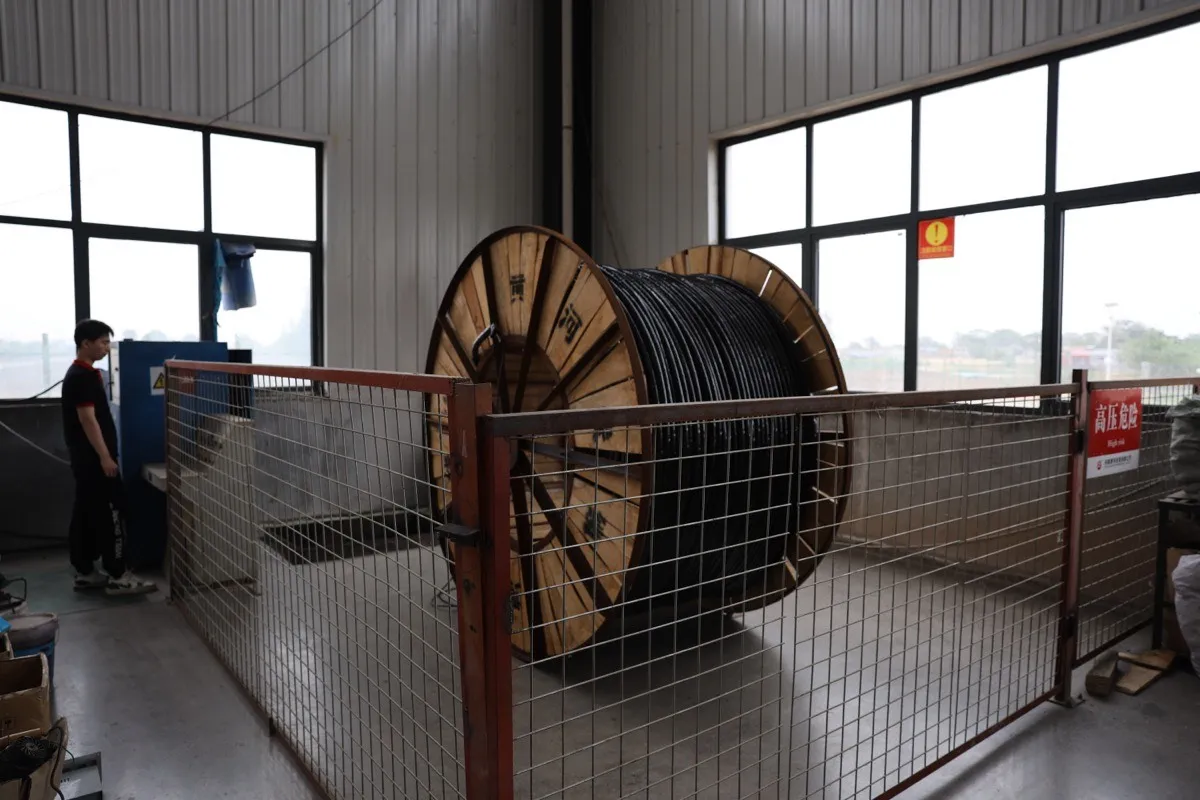

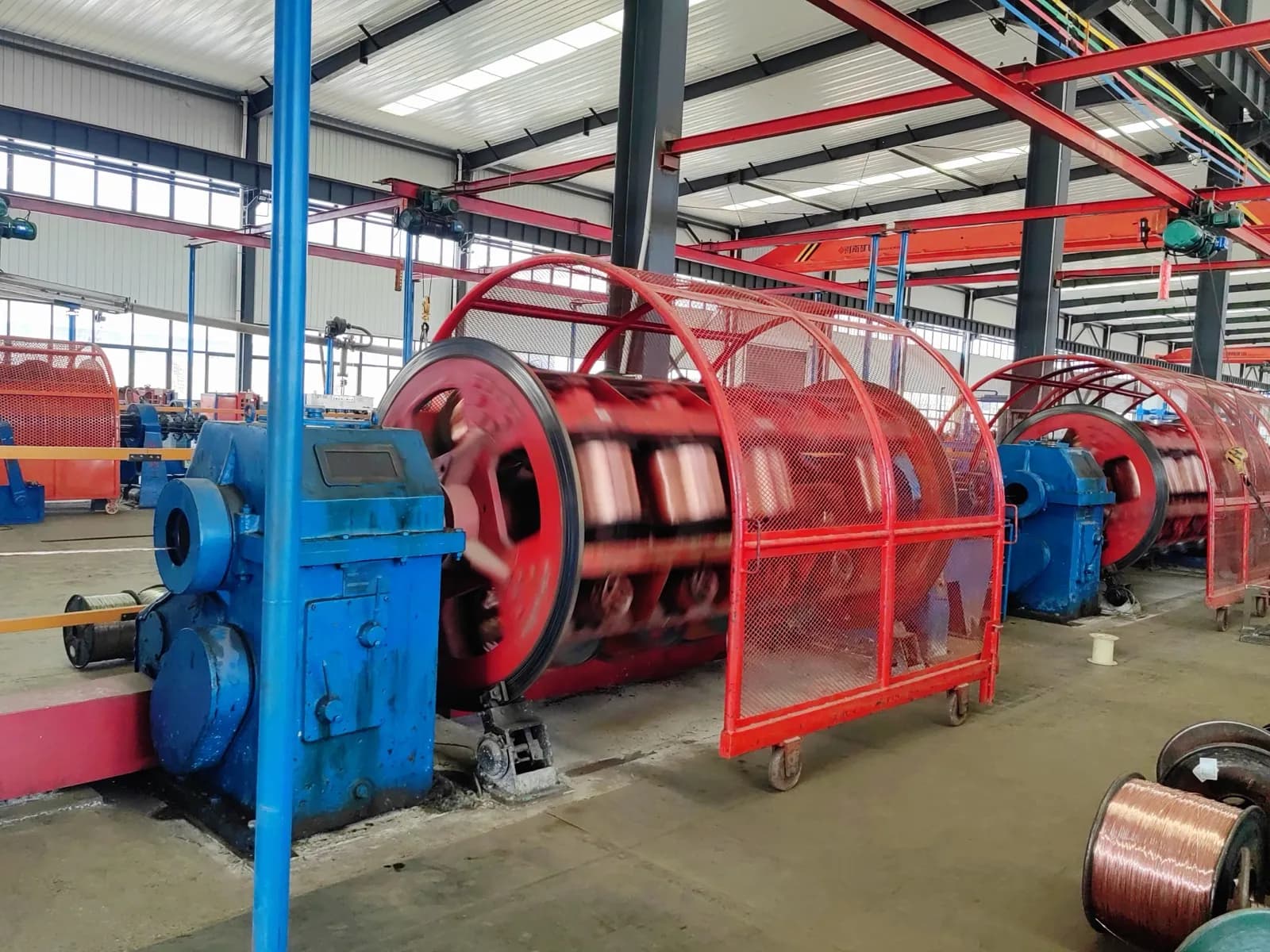

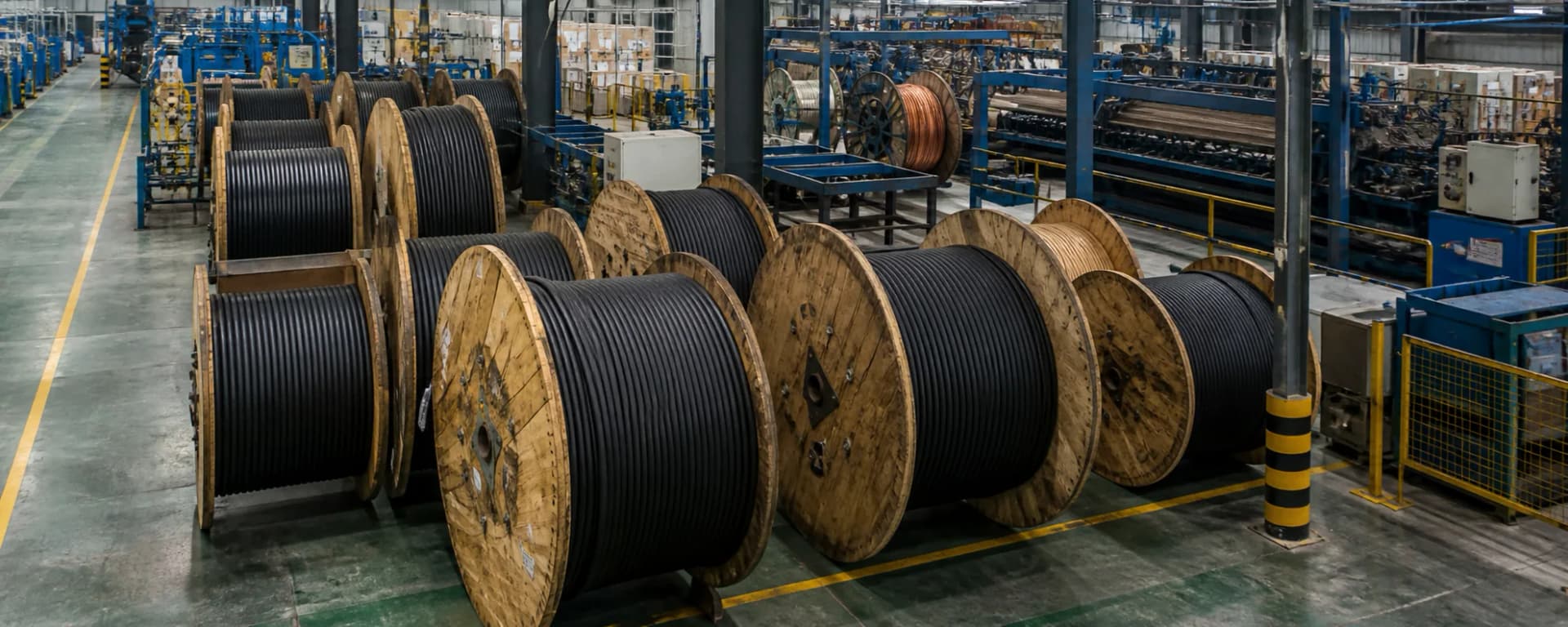

Real photos from our plant in Xinxiang, Henan — conductor stranding line, finished cable drums and high-voltage testing. A genuine factory has nothing to hide: book an SGS/BV audit or visit in person any time.
Factory-Direct vs. Trading Company
The single biggest question every overseas buyer asks: “Am I dealing with a real factory, or a middleman?” Here is the difference — and why it changes your price and your risk.
Huanghe Cable — Real Factory
- ✓Own 45-year manufacturing plant — visit any time
- ✓Factory-direct pricing, no markup layer
- ✓Full control of raw material and in-line QC
- ✓SGS / BV third-party inspection welcome
- ✓Custom drum length, sizes, sheath printing
- ✓Traceable batch + COA with every shipment
Trading Company — Middleman
- ✕No plant — sources from unknown third parties
- ✕Adds 8–20% margin on top of factory price
- ✕Cannot control quality at the source
- ✕Often refuses independent factory audit
- ✕Limited or no customization
- ✕Batch traceability unclear or unavailable
Certifications & Standards
Every cable is manufactured and tested to the international standard your project specification requires. Certificates and type-test reports are available on request.
See our full certificates and test reports.

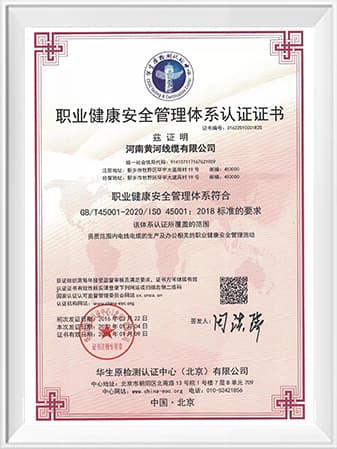

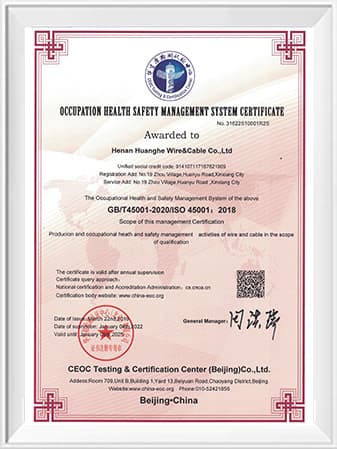

ISO 9001, ISO 14001, ISO 45001 and CCC certified — view all 12 certificates →
CB Scheme Certificate
IECEE CB Certificate CN74210 — international product certification scheme accepted by 50+ countries.
CB Scheme Certificate (Part 2)
Additional IECEE CB Certificate covering extended product range.
Huanghe Cable Certificates
Factory certifications — ISO 9001, CCC, business license, manufacturing qualifications.
SGS Solar Cable Test Report
SGS-issued type test report for solar PV cable — Report NKGWT00258417 REV.1.
Type Test Report — Huanghe Cable
Type test report JC202409DX022-024 for power cable products.
Real certificate references — IECEE CB Scheme CN74210 (accepted across 50+ countries), SGS solar cable report NKGWT00258417, and type-test report JC202409DX022-024. We send the matching certificate for your product with the quote.
Real Export Projects
Named projects with country and volume — the proof a middleman cannot show. These are real supply contracts across our core markets.
Kenya Power System Interconnection
Power transmission cable supply for Kenya's national grid interconnection project — including high-voltage XLPE cable for substation feeders.
- •33kV single-core XLPE cable (240mm² Cu)
- •11kV 3-core XLPE/SWA (185mm²)
- •LV distribution cable
South Africa Solar PV Plant
Solar DC cable and AC collection cable supply for utility-scale PV project in South Africa. SGS-tested solar cable per IEC 62930.
- •4mm² & 6mm² DC solar cable (TUV, 1500V)
- •35kV XLPE AC collector cable
- •Earthing cable
Philippines Aerial Distribution Project
Aerial Bundled Cable (ABC) supply for rural electrification and urban distribution upgrades across Luzon and Visayas.
- •3×70+50mm² ABC (XLPE insulated, AAAC messenger)
- •3×35+50mm² ABC
- •2×16mm² service drop
Vietnam Steel Production Complex
High-current power cable and control cable supply for integrated steel production complex.
- •YJV 1×400mm² Cu/XLPE (high-current feeder)
- •4-core armoured cable (various sizes)
- •KVV 12-core & 19-core control cable
Bangladesh Power Development Board
Long-term cable supplier to Bangladesh Power Development Board — XLPE power cable, ABC, and bare conductor.
- •ACSR Dog/Rabbit conductors
- •0.6/1kV XLPE 4-core armoured cable
- •ABC 3×70+50mm²
Mongolia Oyu Tolgoi Project
Cable supply for Oyu Tolgoi — one of the world's largest known copper-gold deposits.
- •Rubber-sheathed mining cable (EPR insulated)
- •XLPE power cable for surface infrastructure
- •Fire-resistant cable for underground
More case studies on our projects page.
In-House Testing Lab
Quality is verified in our own lab before any cable leaves the plant — not outsourced, not skipped. Every production batch passes the checks below, and third-party inspection by SGS or BV is welcome on top. This is the level of control a trading company simply cannot offer.
Heat Aging Test Chamber
Thermal aging test of XLPE and PVC insulation per IEC 60811-401 — verifies long-term thermal endurance.
Aging Test Chamber
Accelerated aging chamber for evaluating cable lifetime under elevated temperature conditions.
Insulation Thickness Measurement
Precision thickness measurement of insulation per IEC 60811-201 — critical for dielectric strength qualification.
Sheath Thickness Measurement
Outer sheath thickness verification ensuring mechanical protection meets specification.
Tensile Strength & Elongation Test
Tensile test per IEC 60811-501 — qualifies insulation and sheath mechanical properties before and after aging.
Conductor Resistance Test
DC resistance measurement at 20°C per IEC 60228 — verifies conductor cross-section and copper / aluminum purity.
Overall Diameter Measurement
Overall diameter verification with calibrated micrometers — every production batch is measured before shipment.
Conductor resistance is measured per IEC 60228, insulation and sheath thickness per IEC 60811, and thermal endurance through accelerated heat-aging — the same test regime international project specifications call for.
How Pricing & Quoting Works
Copper and aluminum prices move daily, so we do not post fixed list prices — that protects you from padded “safety margins.” Instead we quote against your exact specification, factory-direct, and respond fast.
What your quote includes
- • FOB or CIF price to your port
- • Exact construction & standard compliance
- • Lead time and drum/packing details
- • Applicable test reports & certificates
What moves the price
- • Conductor metal (Cu vs Al) & cross-section
- • Voltage class and insulation type
- • Armour, screen and sheath options
- • Order volume and destination port
Our response promise
Send your specs and we return a matched quote within 24 hours. Urgent enquiries via WhatsApp get the quickest reply.
Request a Quote →How to Order
A clear five-step process from your first message to cable landed at your port.
Send your specification
Share voltage, cross-section, quantity and destination port. Our engineers confirm the exact construction.
Receive a quote
FOB or CIF pricing returned within 24 hours, with lead time and standard compliance stated up front.
Sample & verify
Free sample with COA on request. Book SGS or BV pre-shipment inspection before you commit.
Production
Batch-traceable manufacturing with in-line quality gates. Progress photos shared through production.
Ship & clear customs
Full export documentation prepared — certificate of origin, packing list, test reports — for smooth clearance.
Supplier FAQ
The questions overseas buyers ask us most — answered up front.
▸ What is your minimum order quantity (MOQ)?
MOQ is flexible and depends on the product and specification. We handle full container loads as well as smaller trial orders. Send us your project size and we will advise the most cost-effective arrangement.
▸ Can I visit or audit your factory before ordering?
Yes. We welcome factory visits and third-party audits by SGS, BV or your own inspector. As a real manufacturer, our production line, testing lab and certifications are open for verification — a genuine factory has nothing to hide.
▸ Which international standards can you manufacture and certify to?
IEC 60502, IEC 60331, GB/T 12706, BS 6622 / BS 5467 / BS 6387, SANS 1507, EN 50618, ASTM B232 and more. Tell us the standard your project specifies and we confirm compliance in writing before production.
▸ Are you a factory or a trading company?
We are the manufacturer — Huanghe Cable, a 45-year cable factory in Xinxiang, Henan. You buy factory-direct with no middleman markup, full quality control at source, and complete batch traceability.
▸ How is pricing structured and how do I get a quote?
Pricing is factory-direct on an FOB or CIF basis to your port, with no trading-company margin. Because copper and aluminum prices move daily, we quote against your exact specification — request a quote and we respond within 24 hours.
▸ Which countries do you export to?
We ship to 60+ countries with a strong focus on Southeast Asia, Africa and the Middle East — including the Philippines, Vietnam, Indonesia, Nigeria, Kenya, South Africa, Saudi Arabia, UAE and Iraq. We understand local standards and import documentation for these markets.
▸ How is the cable packed and shipped?
Cable is wound onto steel or plywood drums, or coiled and wrapped for smaller sizes, with the drum length and marking printed to your requirement. We arrange FOB or CIF shipping to your nearest port and prepare full export documentation — certificate of origin, packing list, bill of lading and test reports — for smooth customs clearance.
▸ What payment terms do you accept?
We work with T/T and L/C, and we welcome third-party pre-shipment inspection before the balance is released. For overseas buyers this means you can verify the goods against specification before final payment — the security a trading company rarely provides.
▸ Can you produce to my project's specific standard and marking?
Yes. We manufacture to IEC, GB, BS, SANS and other national standards, and we print the required standard, size, voltage rating and your project marking directly on the sheath. Send the tender specification and we confirm every construction detail in writing before production starts.
Cable Buying & Specification Guides
Dig deeper into specifications and sourcing before you order.
Get Factory-Direct Cable Pricing Today
Send us your specification and destination port — we respond with a quote within 24 hours.
