PVC Insulated PVC Sheathed Control Cable
PVC Control Cable (KVV)
Multi-core PVC control cable for industrial automation, switchgear, and instrumentation circuits
KVV series PVC insulated control cable is designed for transmitting control signals, instrumentation data, and low-power circuits in industrial plants, power stations, and automation systems. Rated 450/750V, available in 2 to 61 cores with copper conductors from 0.75mm² to 10mm². Suitable for fixed installation on cable trays, in ducts, or indoors where mechanical protection is not critical.
Key features
- Copper conductor (Class 1 solid or Class 2 stranded)
- PVC insulation rated 70°C continuous operation
- Colour-coded cores per IEC 60227 for easy identification
- Available 2-core to 61-core configurations
- Conductor range: 0.75mm², 1.0mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm²
- Rated voltage: 450/750V
Typical applications
- Industrial automation and PLC control circuits
- Power station auxiliary control systems
- Switchgear and motor control centres (MCC)
- Instrumentation signal transmission
- Building management systems (BMS)
- HVAC and lighting control circuits
KVV PVC Control Cable Specifications (450/750V, Copper Conductor)
Custom sizes available on request — send us your project specification.
| Cores × Section (mm²) | Insulation Thickness (mm) | Approx. OD (mm) | Approx. Weight (kg/km) | Max. Conductor Temp (°C) |
|---|---|---|---|---|
| 2×1.5 | 0.7 | 9.0 | 105 | 70 |
| 4×1.5 | 0.7 | 10.8 | 160 | 70 |
| 7×1.5 | 0.7 | 13.2 | 240 | 70 |
| 10×1.5 | 0.7 | 15.5 | 320 | 70 |
| 14×1.5 | 0.7 | 17.0 | 420 | 70 |
| 19×1.5 | 0.7 | 19.5 | 540 | 70 |
| 27×1.5 | 0.7 | 22.0 | 720 | 70 |
| 37×1.5 | 0.7 | 25.5 | 960 | 70 |
| 4×2.5 | 0.8 | 12.5 | 230 | 70 |
| 7×2.5 | 0.8 | 15.0 | 360 | 70 |
| 10×2.5 | 0.8 | 17.5 | 490 | 70 |
| 19×2.5 | 0.8 | 22.5 | 810 | 70 |

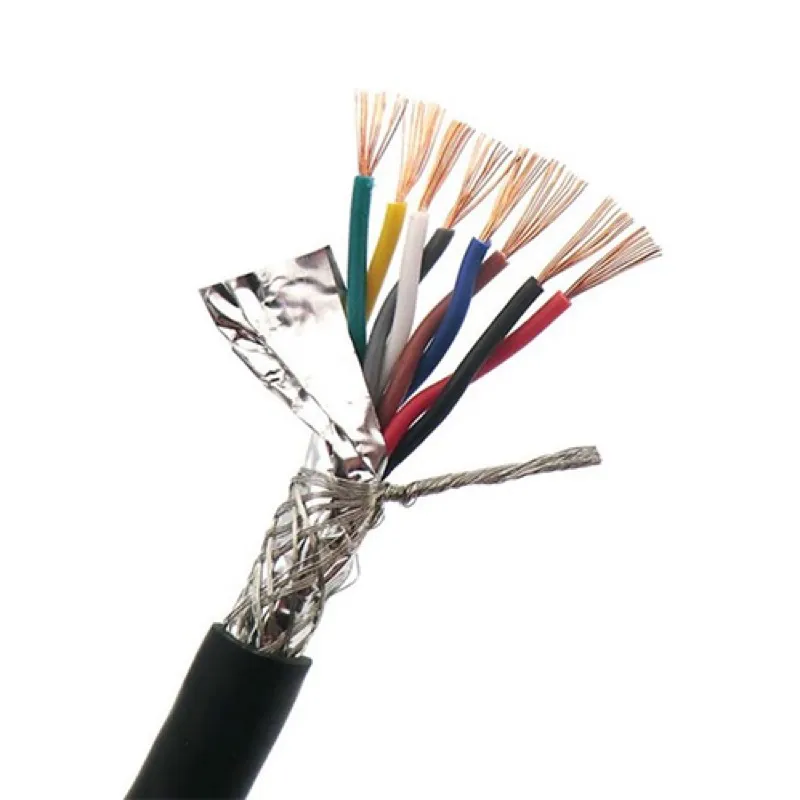

PVC Control Cable (KVV) gallery
Factory & delivery capability
Real photos from our production facility — from raw material to container loading.
Production Line
Quality Testing
Warehouse & Stock
Drum Packaging
Container Loading
Ready to Ship
Frequently asked questions about PVC Control Cable (KVV)
Q.What is the difference between KVV and KVVP cable?
KVV is unshielded PVC control cable. KVVP adds a braided copper wire screen (shield) over the cores, providing electromagnetic interference (EMI) protection. Use KVVP when control signals run alongside power cables or in electrically noisy environments.
Q.What core counts are available?
We manufacture KVV control cable from 2 cores up to 61 cores. Standard options: 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, and 61 cores. Custom core counts available on request.
Q.Can control cable be used for power circuits?
Control cable is rated 450/750V and designed for control signals and low-power circuits (typically up to 10mm²). For power distribution above 1kV or larger conductor sizes, use dedicated power cable (YJV/VV series).
Q.What is the maximum operating temperature?
PVC insulated control cable operates continuously at 70°C. For higher temperature environments, XLPE insulated control cable is available with 90°C rating.
Q.Do you provide armoured control cable?
Yes. KVV22 (steel tape armour) and KVV32 (steel wire armour) are available for direct burial or installations requiring mechanical protection. See our Armoured Control Cable product page.
