Aerial Bundled Cable
ABC Cable
Insulated overhead cable — safer, lower line losses, EPC standard for urban distribution
ABC (Aerial Bundled Cable) is an insulated overhead distribution cable consisting of XLPE-insulated aluminum cores twisted around a bare or insulated neutral messenger. Compared to bare conductors, ABC dramatically reduces theft, accidental contact, tree-trip outages, and line-to-line faults — making it the modern standard for low-voltage distribution in cities, rural electrification, and international grid projects.
Key features
- XLPE insulation rated 0.6/1 kV, weather and UV resistant
- Compact bundled design — reduced right-of-way
- Drastically lowers theft and accidental electrocution
- Reduced line losses, lower outage rates
- Available 2-core / 3-core / 4-core / 5-core configurations
- AAAC or ACSR neutral messenger options
Typical applications
- Low-voltage urban distribution (0.6/1 kV)
- Rural electrification programs
- Forest / wooded area lines (reduced tree-trip)
- International grid projects (Africa / SE Asia)
- Replacement of bare conductors in dense areas
Common ABC Configurations (0.6/1 kV)
Custom sizes available on request — send us your project specification.
| Configuration | Phase Conductor (mm²) | Neutral Messenger (mm²) | Outer Diameter (mm) | Approx. Weight (kg/km) | Current Rating (A) |
|---|---|---|---|---|---|
| 3×16+1×25 | 16 | 25 (AAAC) | 21 | 240 | 75 |
| 3×25+1×35 | 25 | 35 (AAAC) | 23 | 330 | 100 |
| 3×35+1×50 | 35 | 50 (AAAC) | 26 | 440 | 125 |
| 3×50+1×54.6 | 50 | 54.6 (AAAC) | 29 | 590 | 150 |
| 3×70+1×54.6 | 70 | 54.6 (AAAC) | 32 | 770 | 190 |
| 3×95+1×70 | 95 | 70 (AAAC) | 36 | 1010 | 230 |
| 3×120+1×95 | 120 | 95 (AAAC) | 40 | 1280 | 265 |
| 3×150+1×95 | 150 | 95 (AAAC) | 44 | 1530 | 305 |

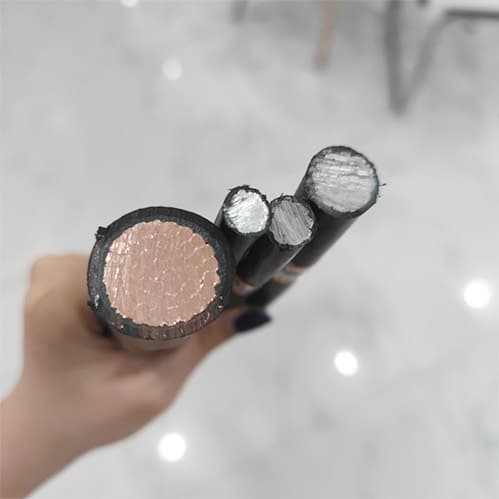

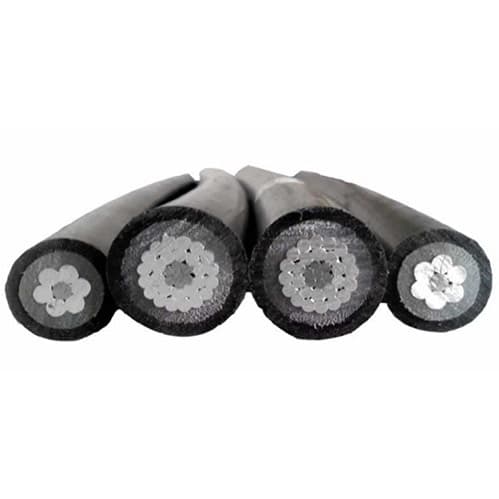

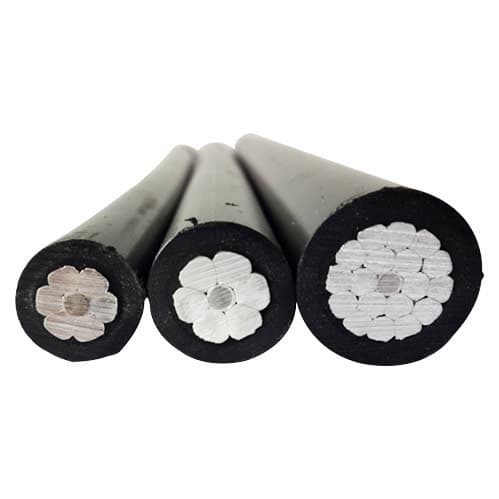

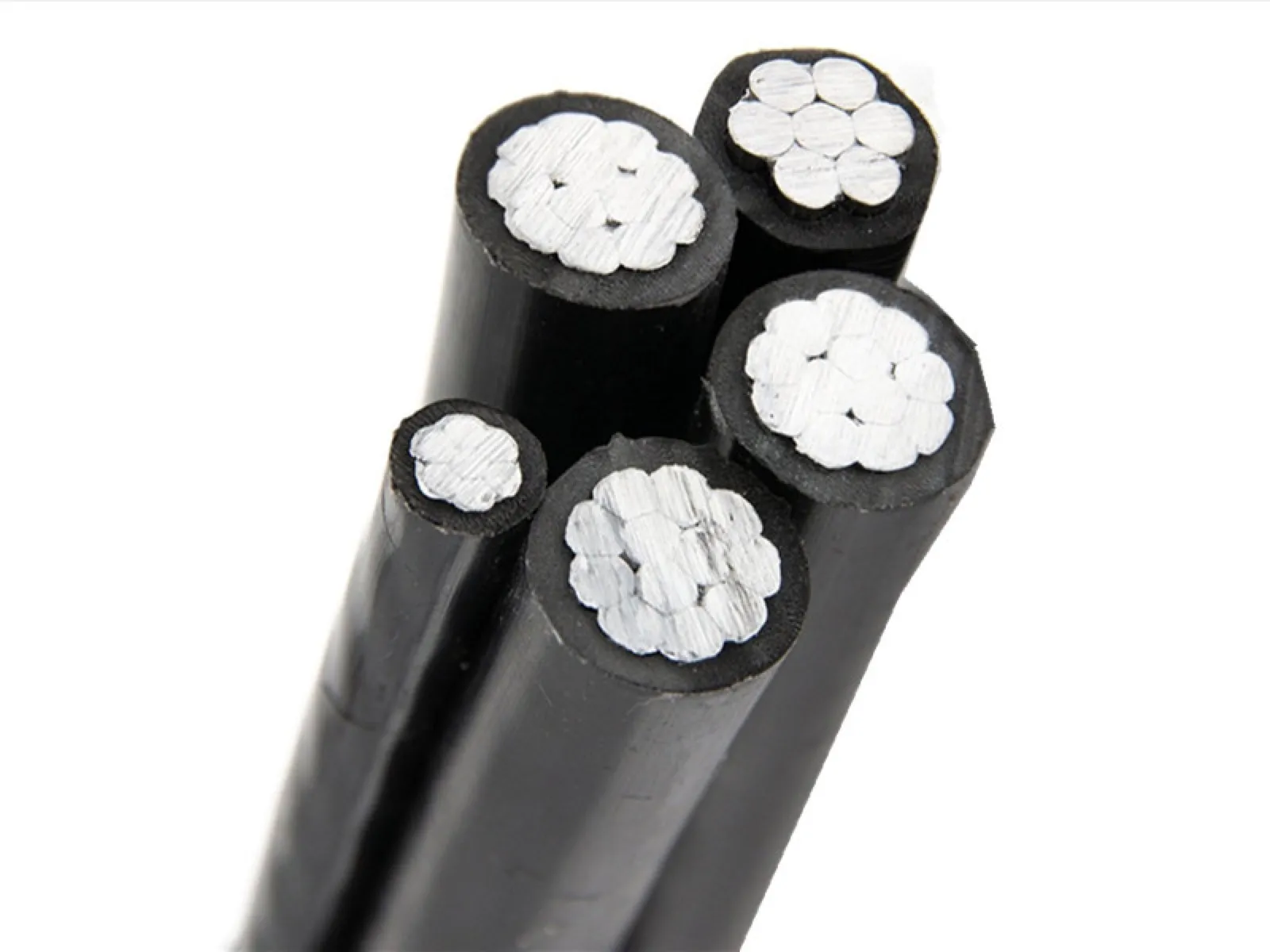

ABC gallery
Factory & delivery capability
Real photos from our production facility — from raw material to container loading.
Production Line
Quality Testing
Warehouse & Stock
Drum Packaging
Container Loading
Ready to Ship
Frequently asked questions about ABC
Q.What's the main advantage of ABC over bare conductors?
ABC is fully insulated — it eliminates accidental contact, drastically reduces theft, lowers tree-trip outages, and allows tighter installation in cities. Total project cost is often lower despite higher cable cost, due to fewer outages and reduced right-of-way.
Q.Do you supply ABC accessories (insulation piercing connectors, suspension clamps)?
Yes. We supply matching ABC accessories — IPC connectors, dead-end clamps, suspension clamps, hooks, and pole brackets — through our partner factories. One PO covers cable + accessories.
Q.What's the typical lead time for a 40HQ container of ABC?
10-15 days for standard sizes (3×16+1×25 to 3×120+1×95). Custom configurations or large orders quoted case by case. We can drum-pack 1000m / 1500m / 2000m per drum.
Q.Is ABC suitable for tropical climates with heavy UV?
Yes. Our XLPE insulation includes carbon black UV stabilizer rated for tropical sun exposure. We've supplied ABC to projects in the Philippines, Nigeria, and the UAE with no UV degradation issues reported after 5+ years of service.
