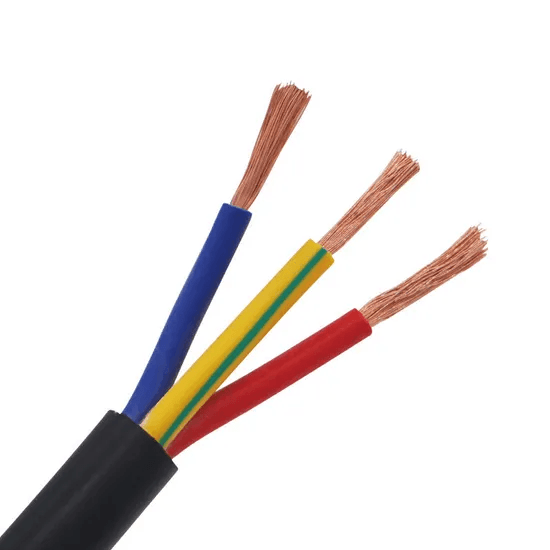

PVC Insulated PVC Sheathed Power Cable
PVC Power Cable (VV)
Cost-effective PVC power cable for general indoor and outdoor installations
VV/VLV series PVC insulated power cable is a versatile, cost-effective solution for general-purpose power distribution rated 0.6/1 kV. PVC insulation and sheath provide adequate moisture and chemical resistance for indoor wiring, cable trays, and duct installations. Available in copper (VV) and aluminum (VLV) conductor versions with 1 to 5 cores.
Key features
- PVC insulation rated 70°C continuous operation
- Lower cost than XLPE — suitable for budget-conscious projects
- Good moisture and chemical resistance
- Copper (Class 1/2) or aluminum conductor
- Available 1-core to 5-core configurations

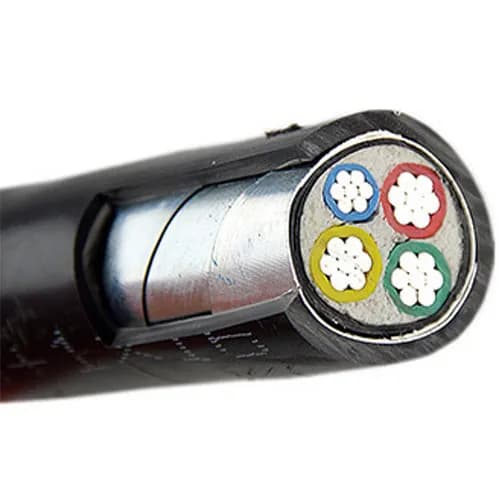

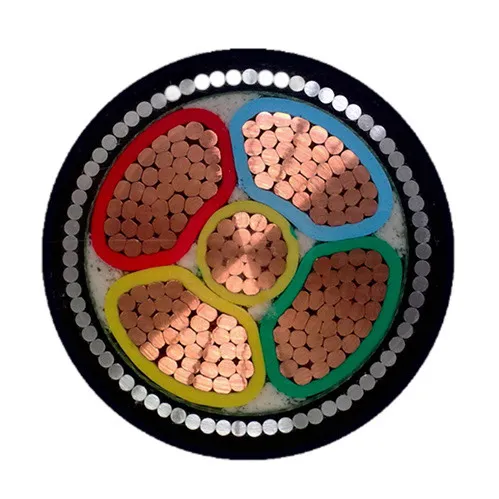

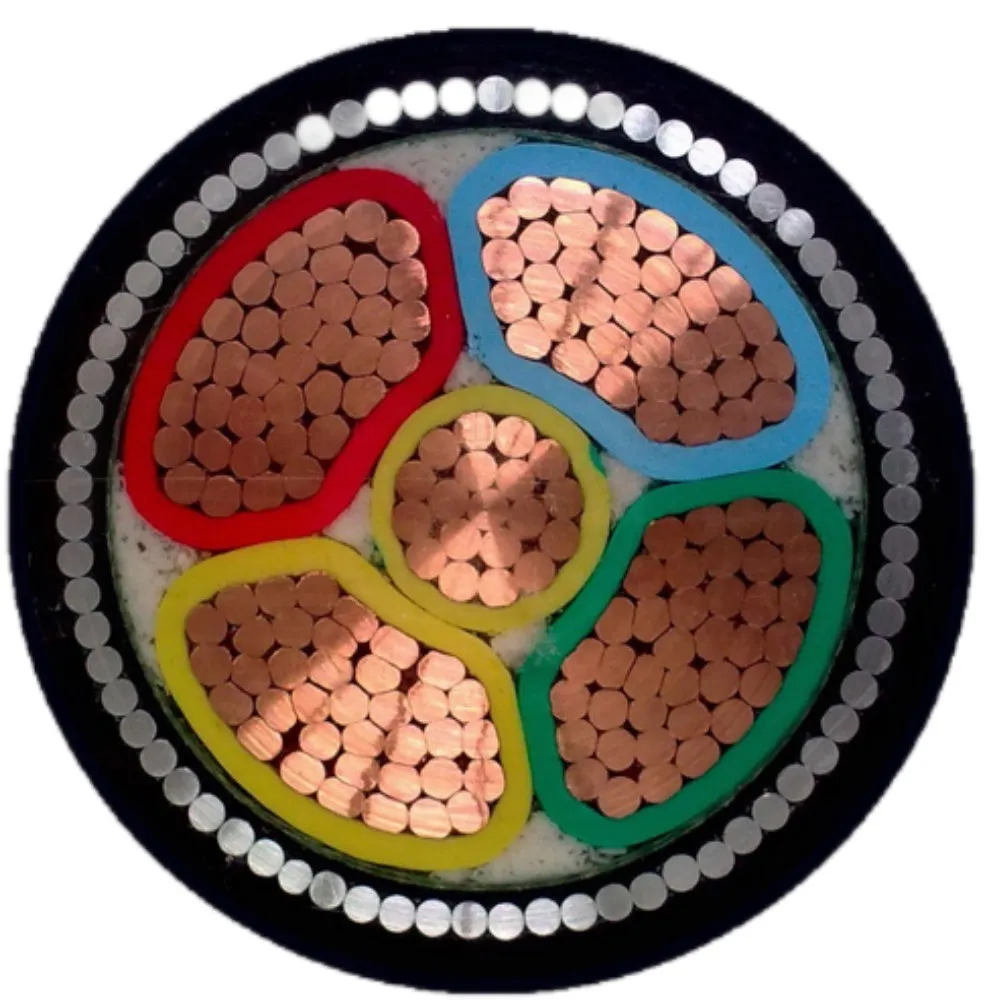

- Optional steel tape armour (VV22) or steel wire armour (VV32)
Typical applications
- Indoor fixed wiring in buildings and factories
- Cable tray and duct installations
- General-purpose power distribution (0.6/1 kV)
- Temporary construction site power supply
- Lighting and small equipment feeders
VV PVC Power Cable Specifications (0.6/1 kV, Copper Conductor)
Custom sizes available on request — send us your project specification.
| Cores × Section (mm²) | Insulation Thickness (mm) | Approx. OD (mm) | Approx. Weight (kg/km) | Current Rating (A) | Max. Conductor Temp (°C) |
|---|---|---|---|---|---|
| 1×16 | 0.7 | 10.5 | 210 | 80 | 70 |
| 1×50 | 1.0 | 15.0 | 540 | 165 | 70 |
| 1×120 | 1.2 | 21.0 | 1200 | 295 | 70 |
| 1×240 | 1.4 | 28.0 | 2300 | 460 | 70 |
| 3×25 | 1.0 | 22.5 | 1000 | 95 | 70 |
| 3×70 | 1.2 | 32.5 | 2500 | 185 | 70 |
| 3×120 | 1.4 | 39.0 | 4100 | 260 | 70 |
| 3×240 | 1.6 | 51.0 | 7800 | 410 | 70 |
| 4×16 | 0.7 | 19.5 | 740 | 65 | 70 |
| 4×95 | 1.2 | 41.0 | 3850 | 200 | 70 |

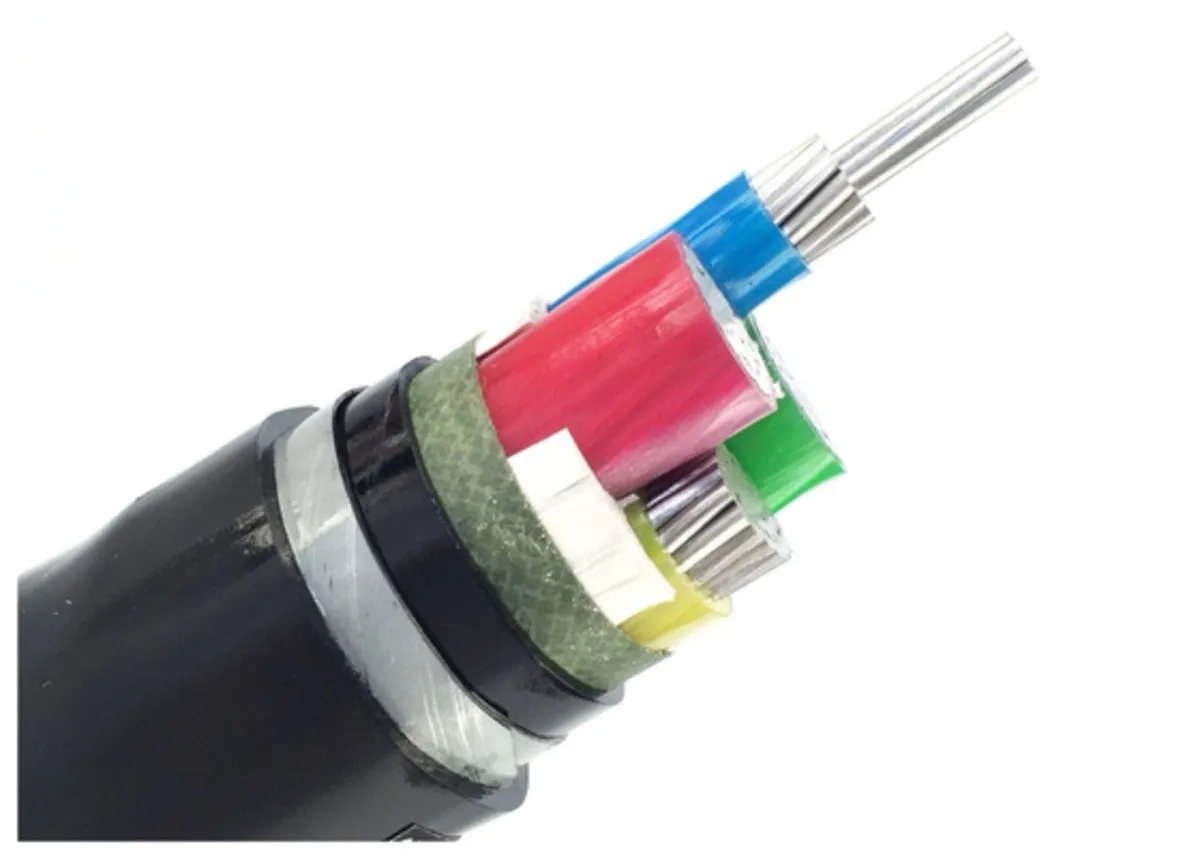

PVC Power Cable (VV) gallery
Factory & delivery capability
Real photos from our production facility — from raw material to container loading.

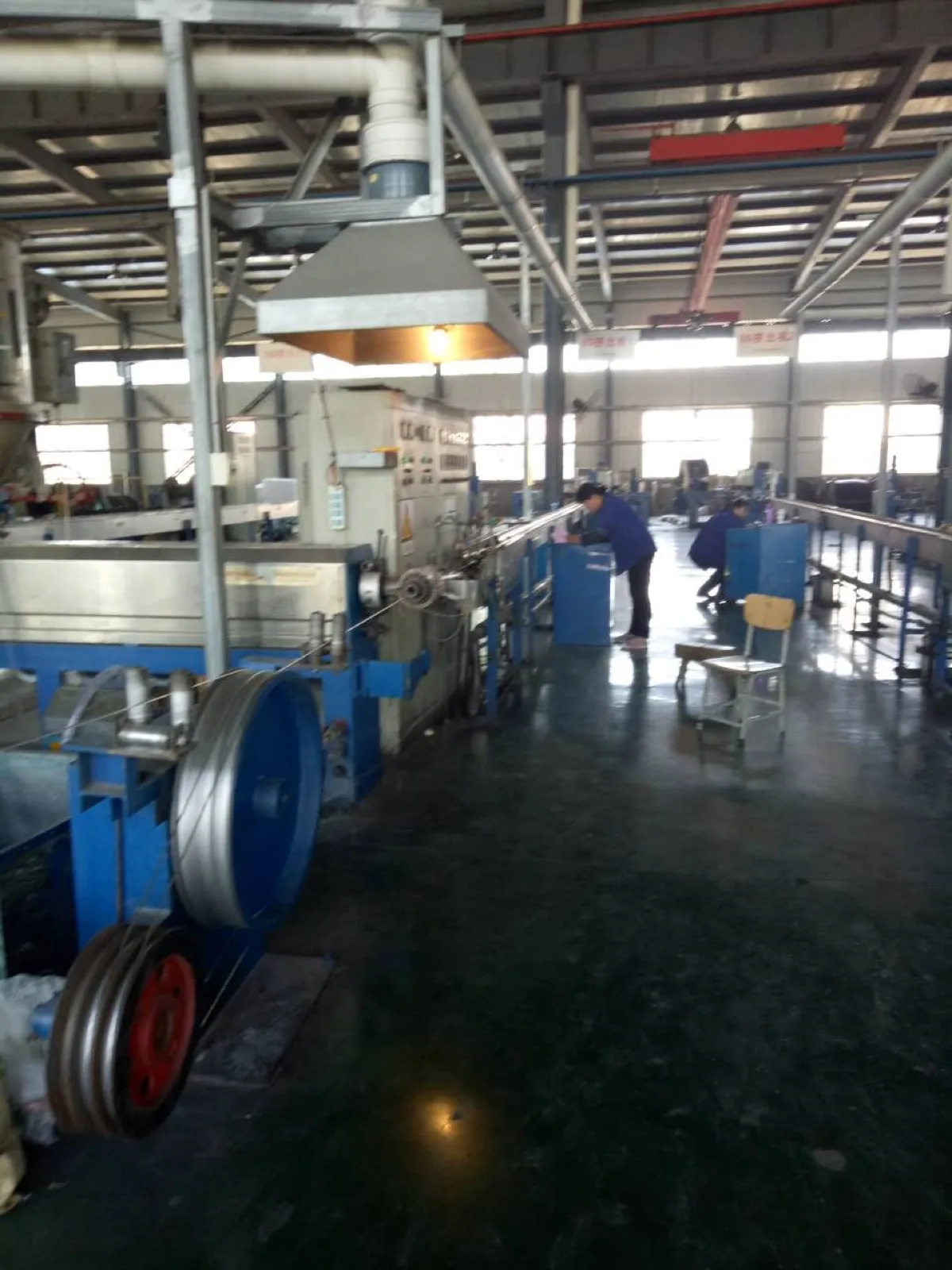

Production Line
Quality Testing
Warehouse & Stock
Drum Packaging
Container Loading
Ready to Ship
Frequently asked questions about PVC Power Cable (VV)
Q.When should I choose PVC (VV) cable over XLPE (YJV)?
PVC cable is suitable for general indoor wiring, cable trays, and installations where budget is priority and operating temperature will not exceed 70°C. For permanent underground installations, higher current loads, or harsh environments, XLPE is the better choice.
Q.Can PVC cable be used underground?
Plain VV cable should be installed in ducts or conduit if buried underground. For direct burial, choose armoured versions (VV22 steel tape armour or VV32 steel wire armour) which provide mechanical protection.
Q.What is the maximum operating temperature of VV cable?
PVC insulation is rated for 70°C continuous operation and 160°C short-circuit (5 seconds max). This is lower than XLPE's 90°C/250°C ratings, which is why XLPE carries more current for the same conductor size.
Q.Do you supply both copper and aluminum conductor versions?
Yes. VV (copper conductor) and VLV (aluminum conductor) are both available. Aluminum versions are lighter and lower cost but require larger cross-sections for the same current rating.
Q.How do I get a quotation for PVC power cable?
Send us your requirements: conductor material, cross-section, number of cores, length, armour type (if needed), and destination port. We provide FOB pricing within 24 hours.
Q.What packaging options are available?
Standard packaging is wooden drum for export. Drum lengths can be customized — typical options are 100m, 200m, 500m, or 1000m per drum. We mark drums with cable specs, length, and shipping marks per your instruction.
